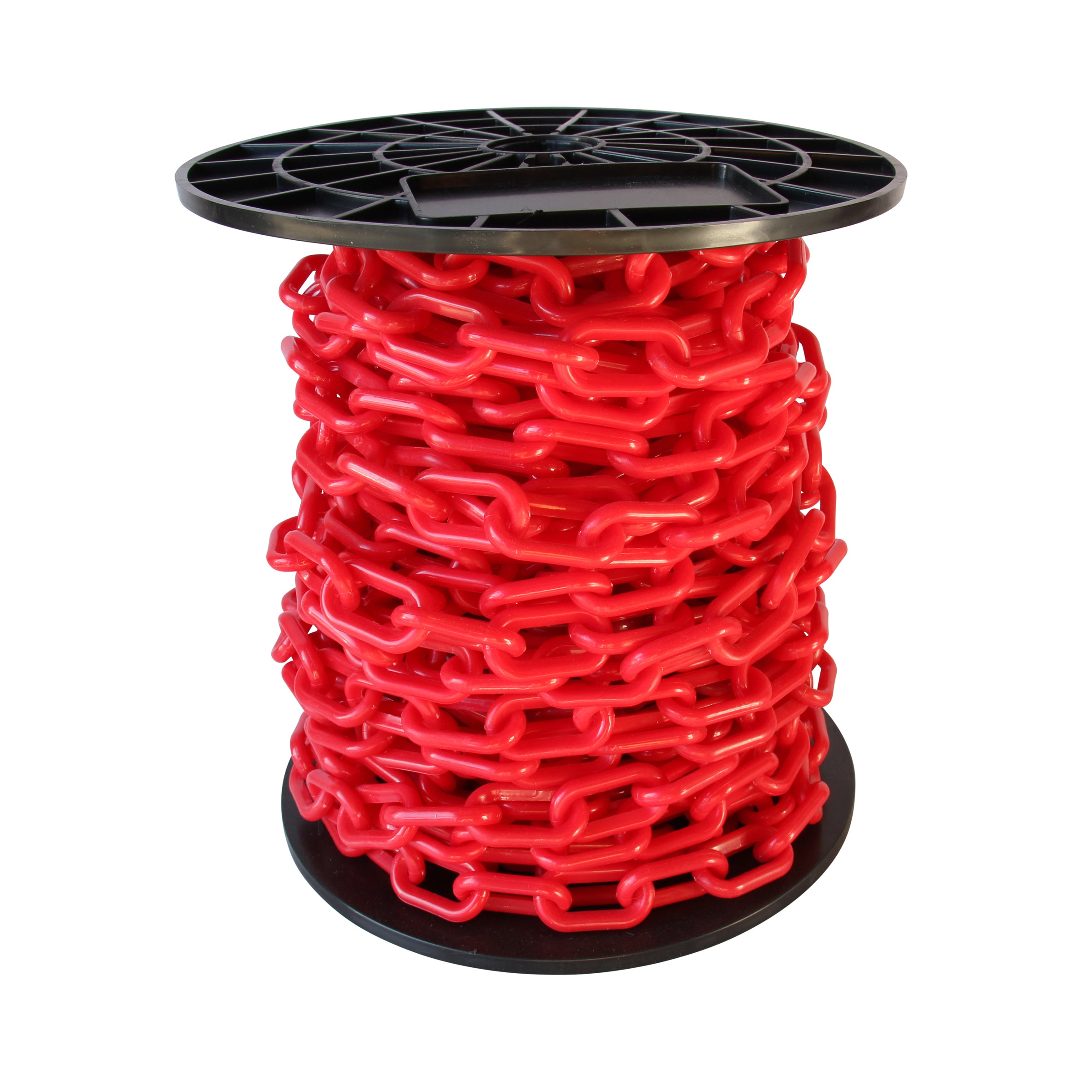

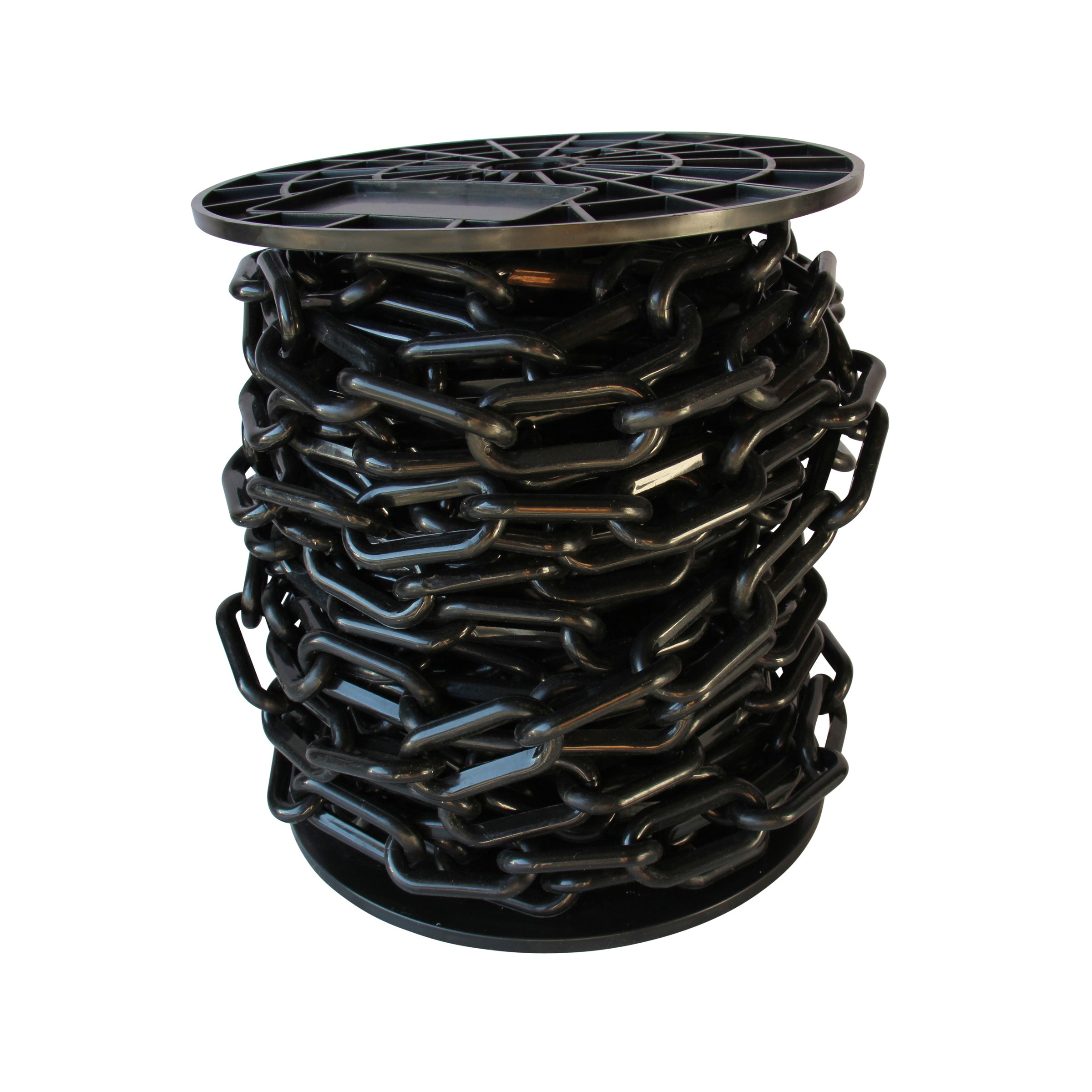

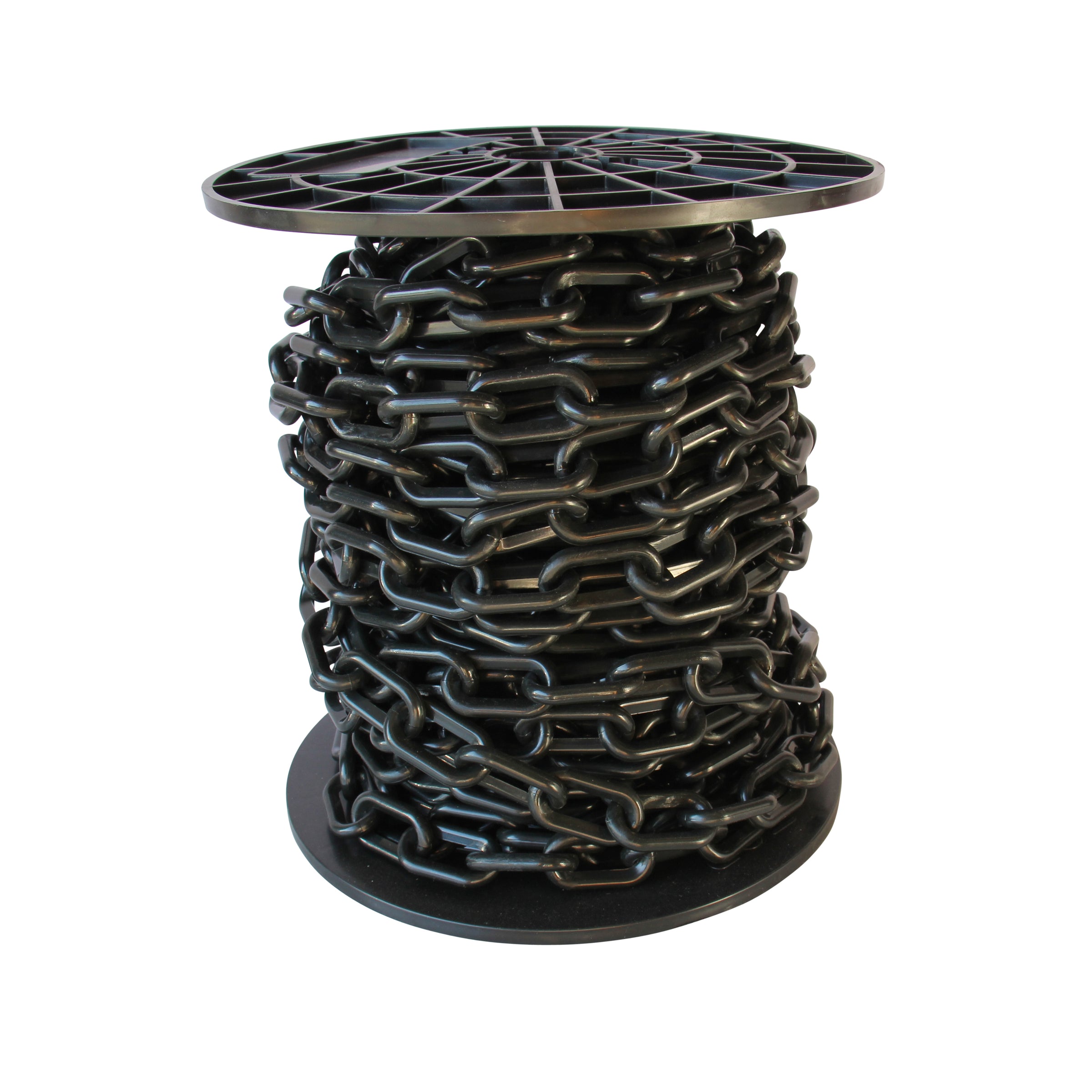

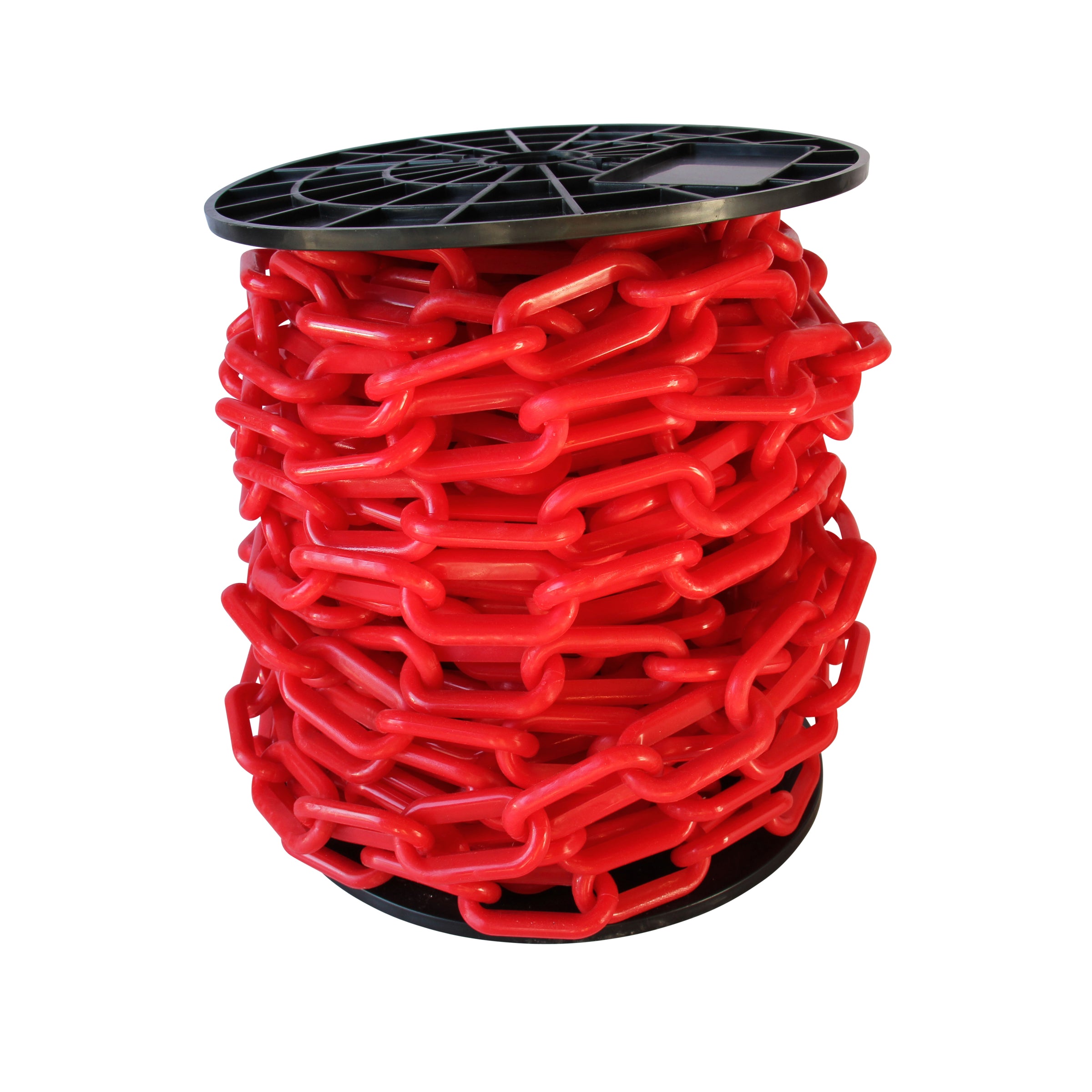

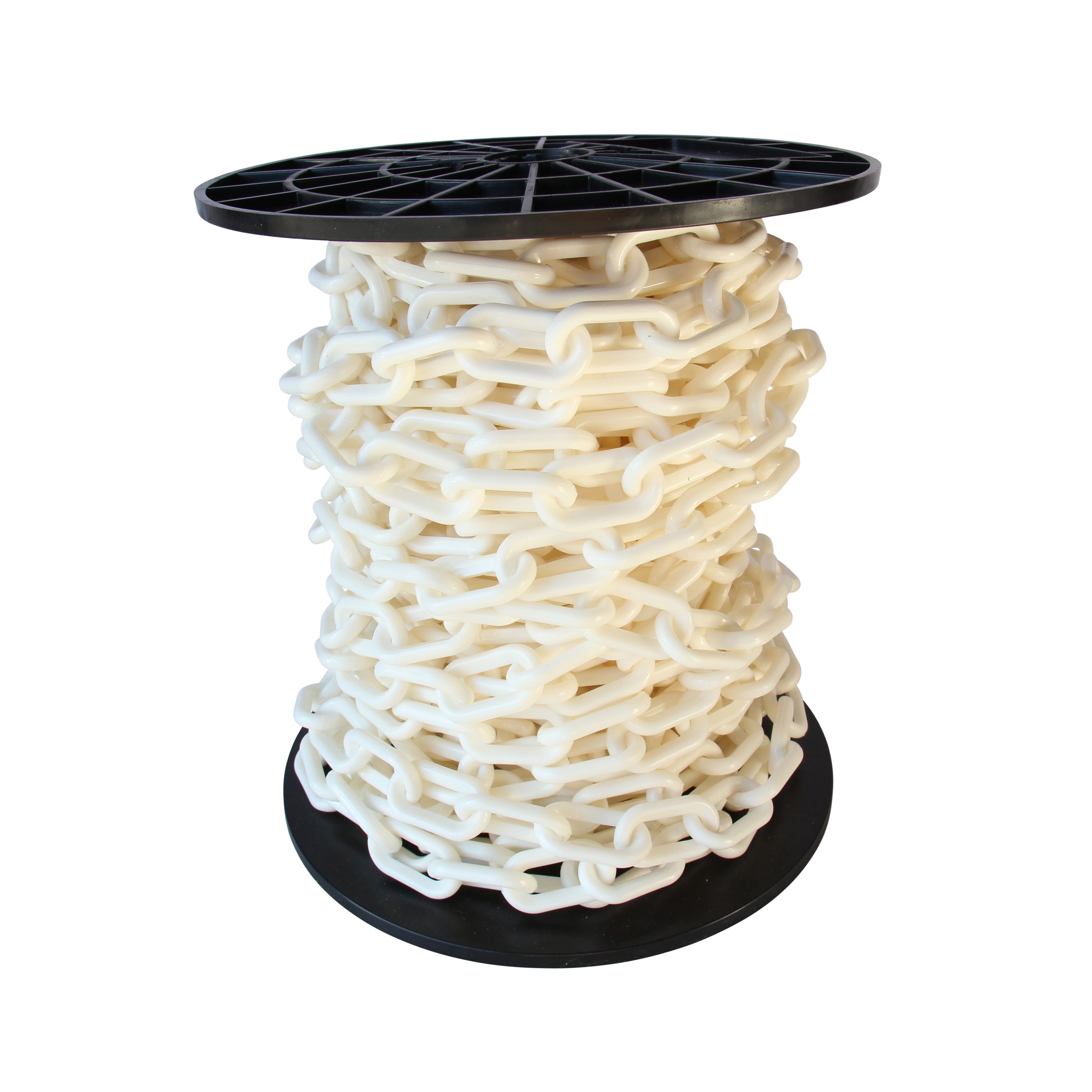

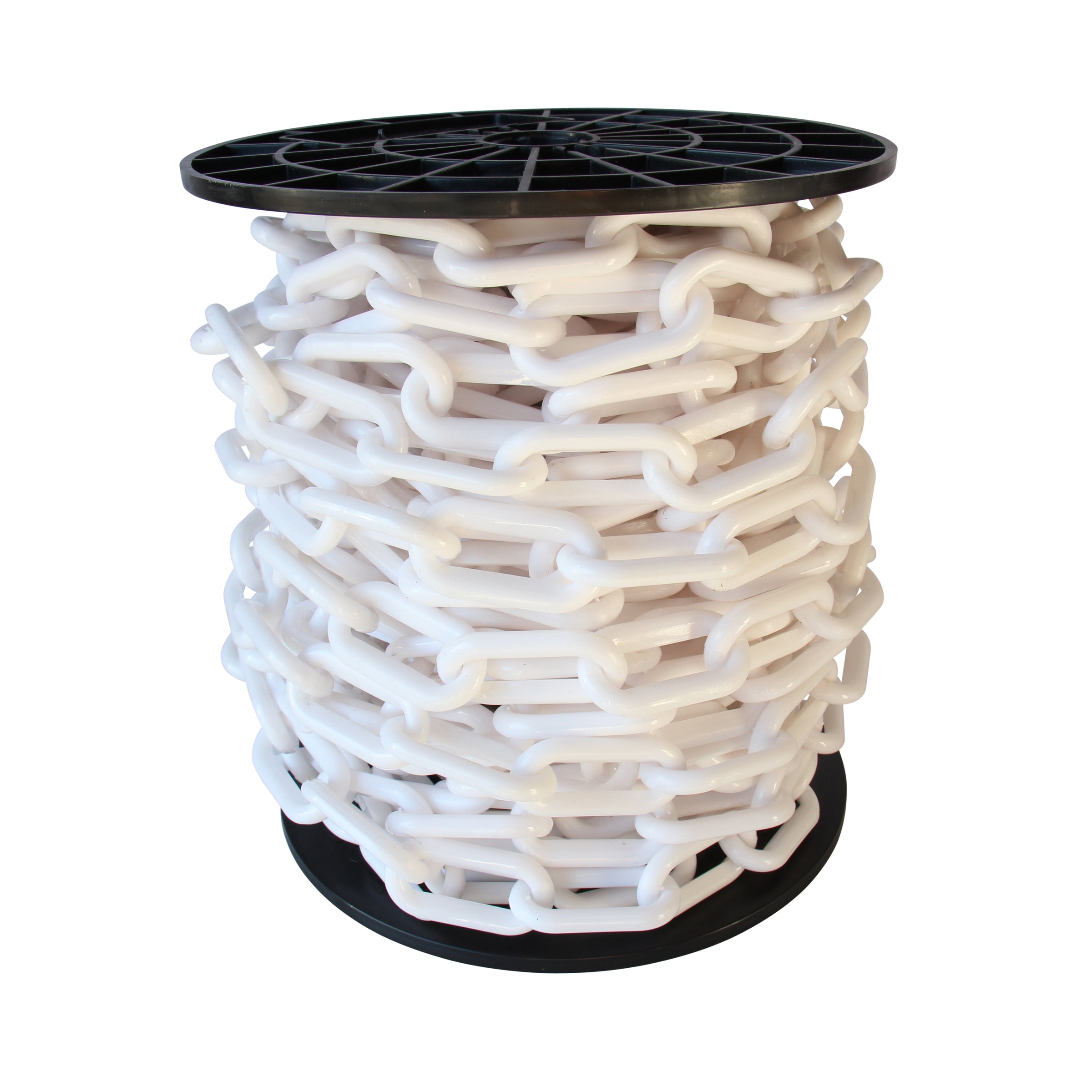

[Reel CH-PL55-U35] Plastic Standard Link Barrier Chain (65FT-REEL)
Chain PL55-U Standard Link Barrier Chain with Oval Unwelded Plastic links
DESCRIPTION
• Max Weight: 22 lbs | Weight per Foot: 0.06 lbs
• Features: Unwelded, Standard Link Chain
• Material: Plastic
This item is available in Black, Red, White, Yellow
Chains are priced by the foot and this product will be supplied as a reel of one continuous chain.
LINK SIZE & SPECS
| Link Size | Gauge | Length (in) | Width (in) | Thickness (in) | Max Load (lbs) | Weight per Foot (lbs) |
|---|---|---|---|---|---|---|
| U35 | 3 | 1.38 | 0.79 | 0.24 | 22 | 0.03 |
| U50 | 1 | 1.97 | 0.94 | 0.31 | 33 | 0.03 |
The “weight per foot” signifies the weight of a 1-foot section the respective chain, not the weight a 1 ft section can sustain.
For example, if you order 8 ft of a chain that weights 0.25 lbs/ft, the total weight of that chain will be 2 lbs.
The “max load” is the amount of weight a chain can safely hold, regardless of how long it is.
When selecting a chain, we recommend calculating the total weight of chain based on the length you need, like in the example above.
Make sure that your total hanging weight (= total weight of fixture + total weight of chain) does not exceed the stated weight capacity.
| Variant | Spec Sheet (PDF) |
|---|---|
| U35 | u35_spec_sheet.pdf |
| U50 | u50_spec_sheet.pdf |
Click Here for Chain Connectors
