[Reel CH-PL55-U50] Plastic Standard Link Barrier Chain (65FT-REEL)

$101.80

FINISH
Black
Red
White
Yellow
Link Size
CH-P55-08-RED-65

Review our Shipping Policy

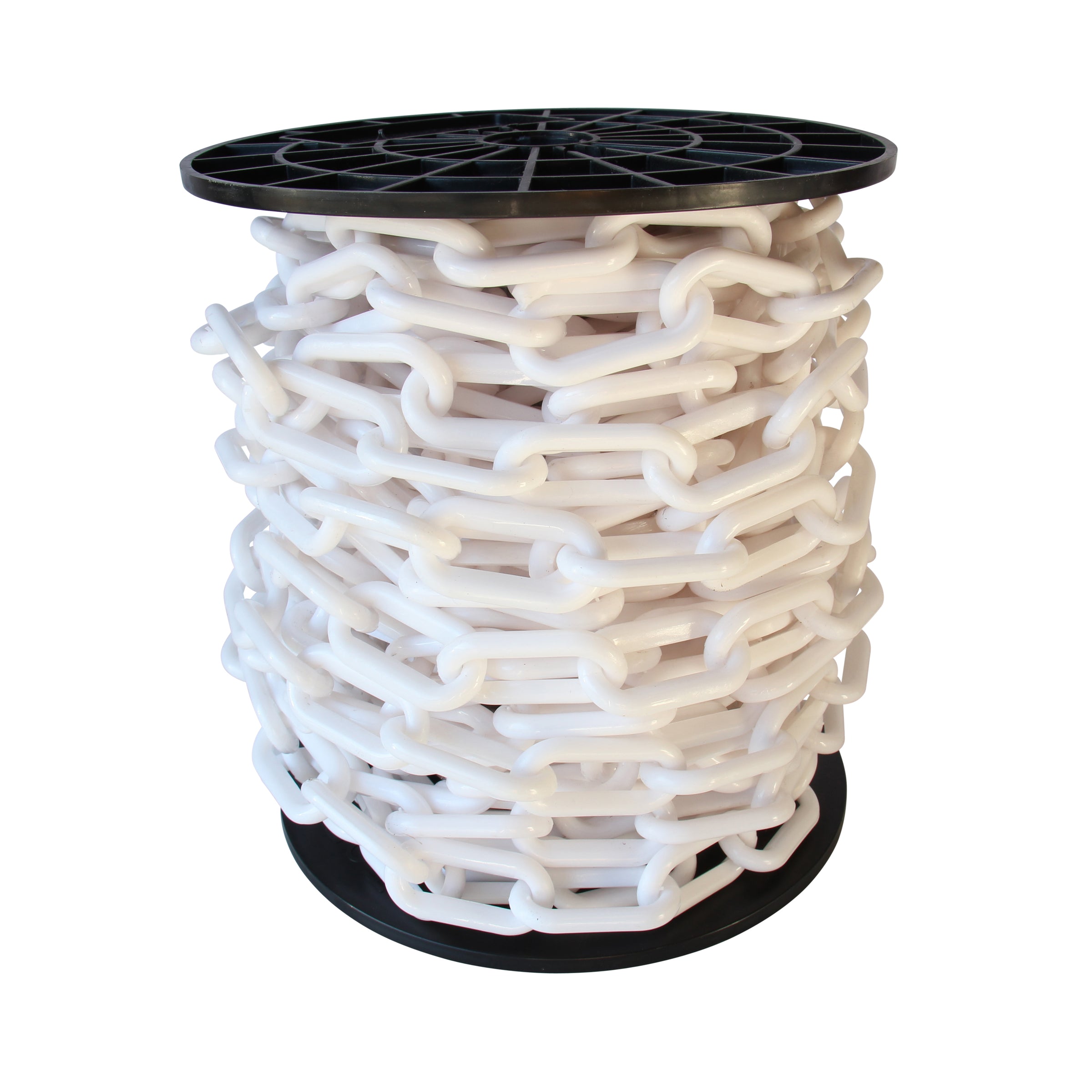

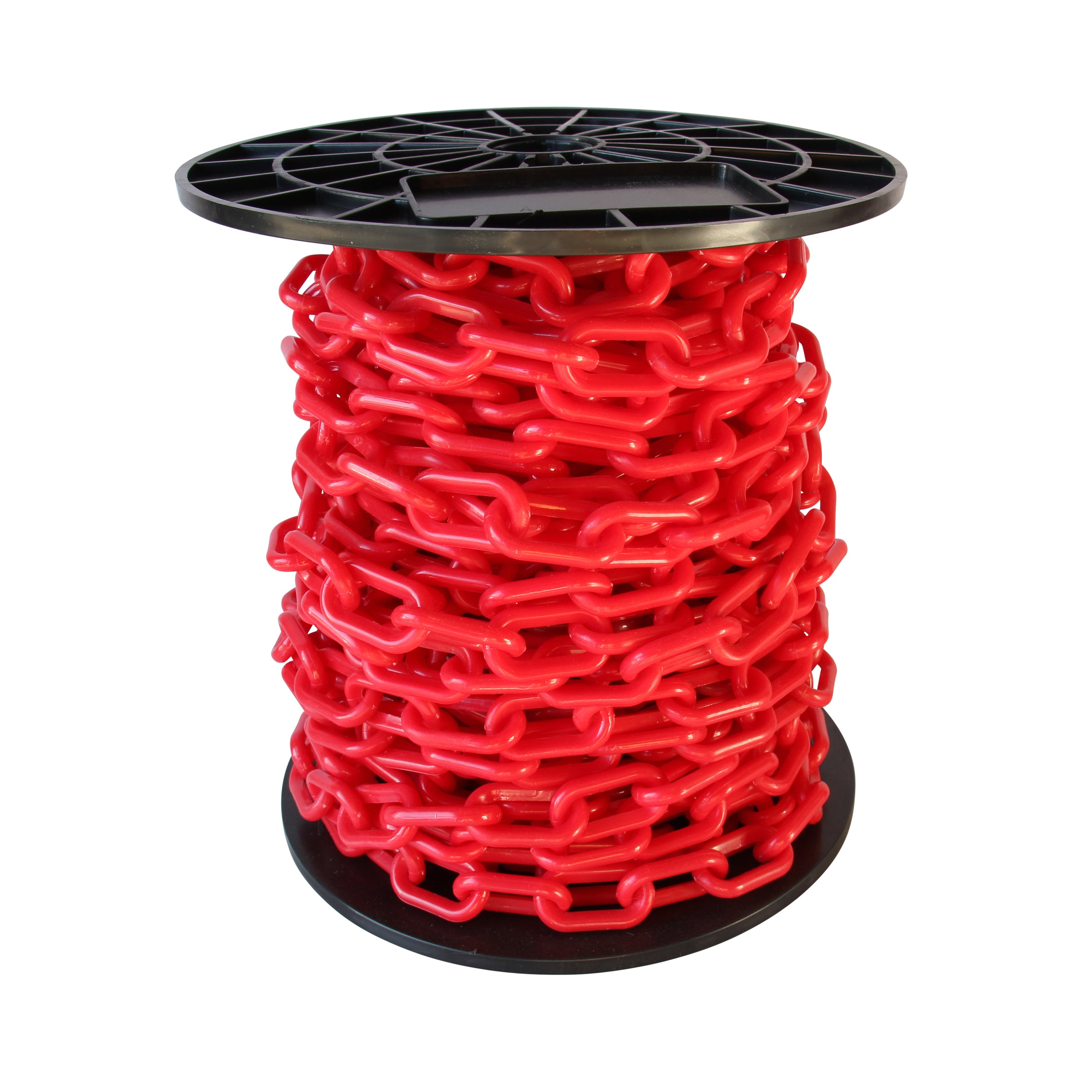

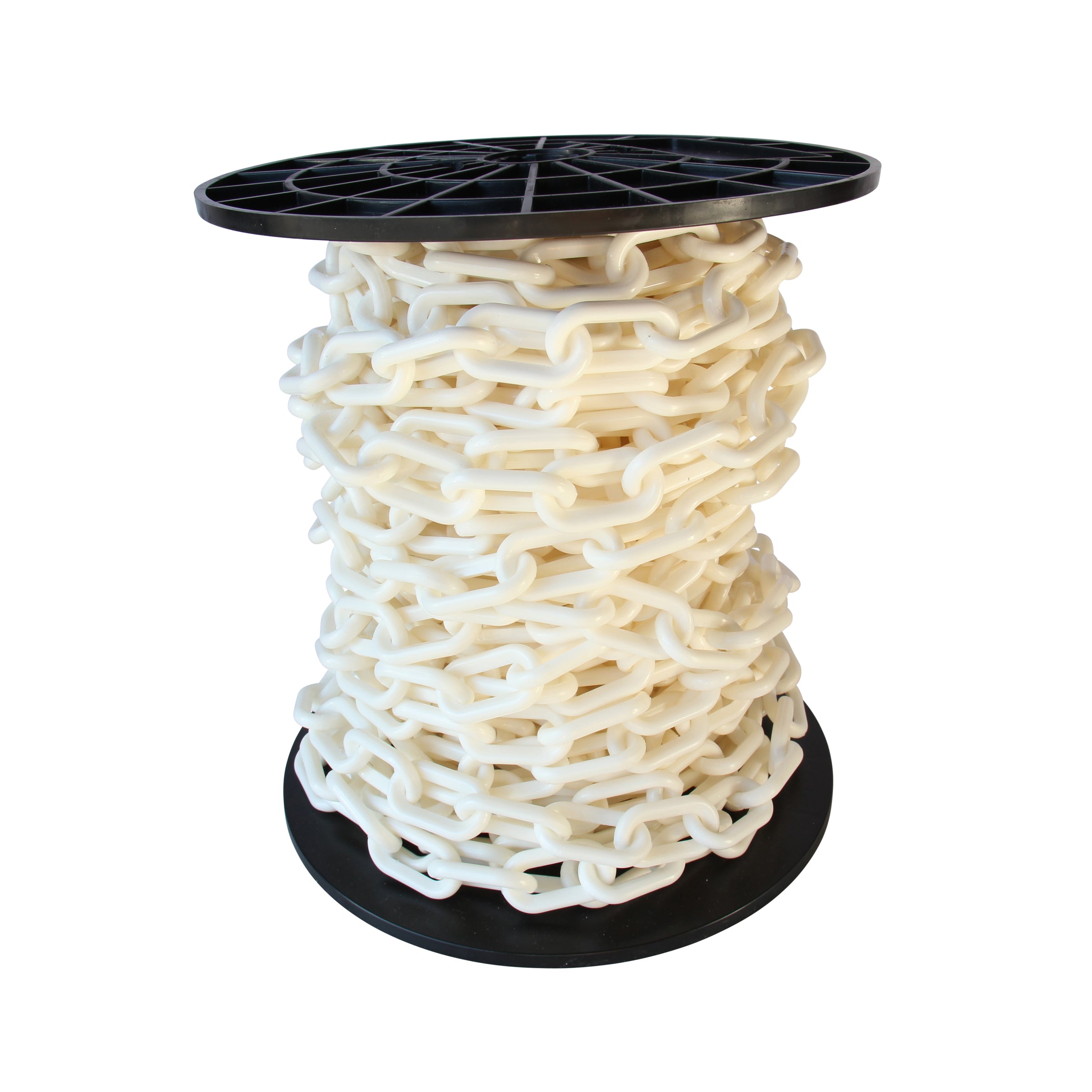

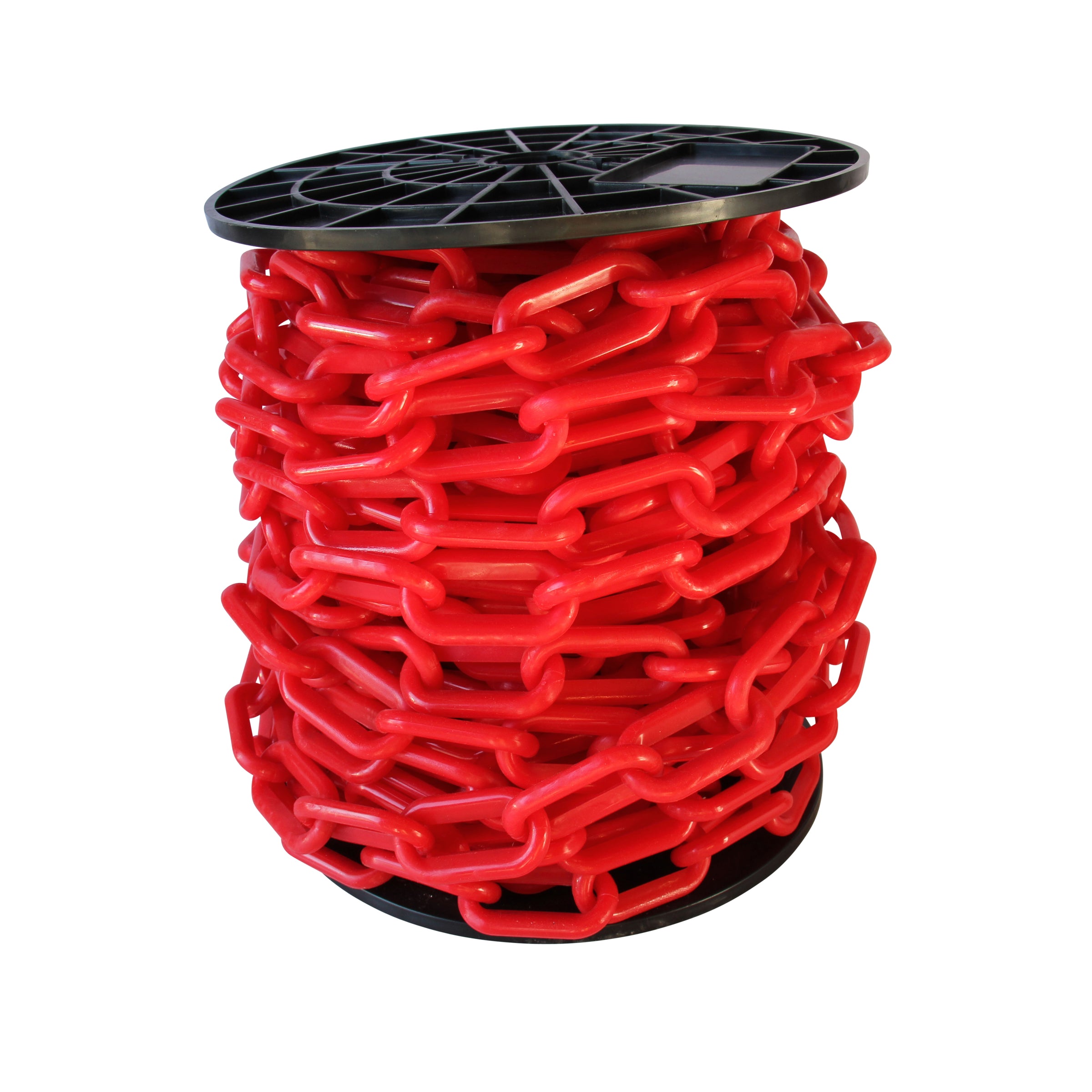

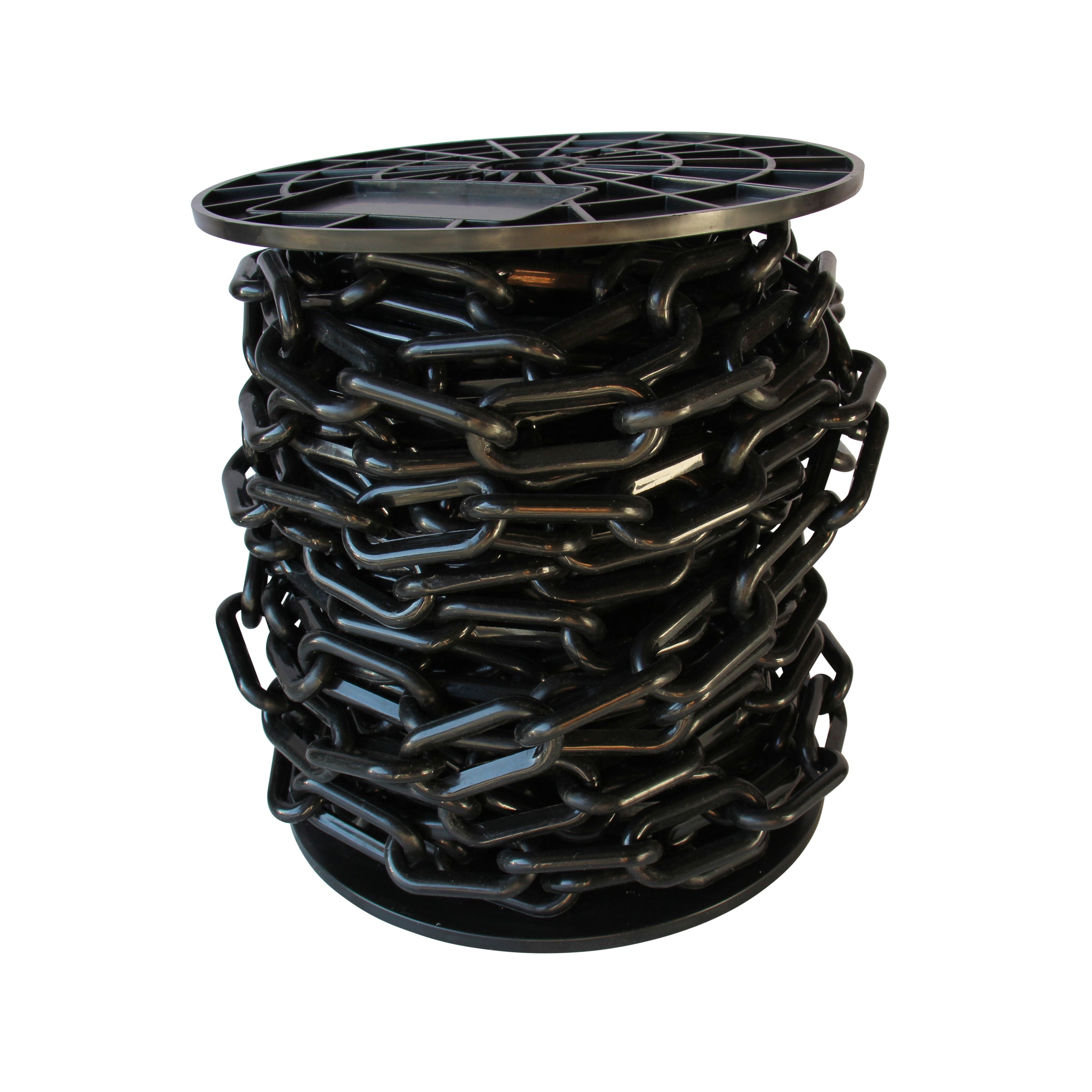

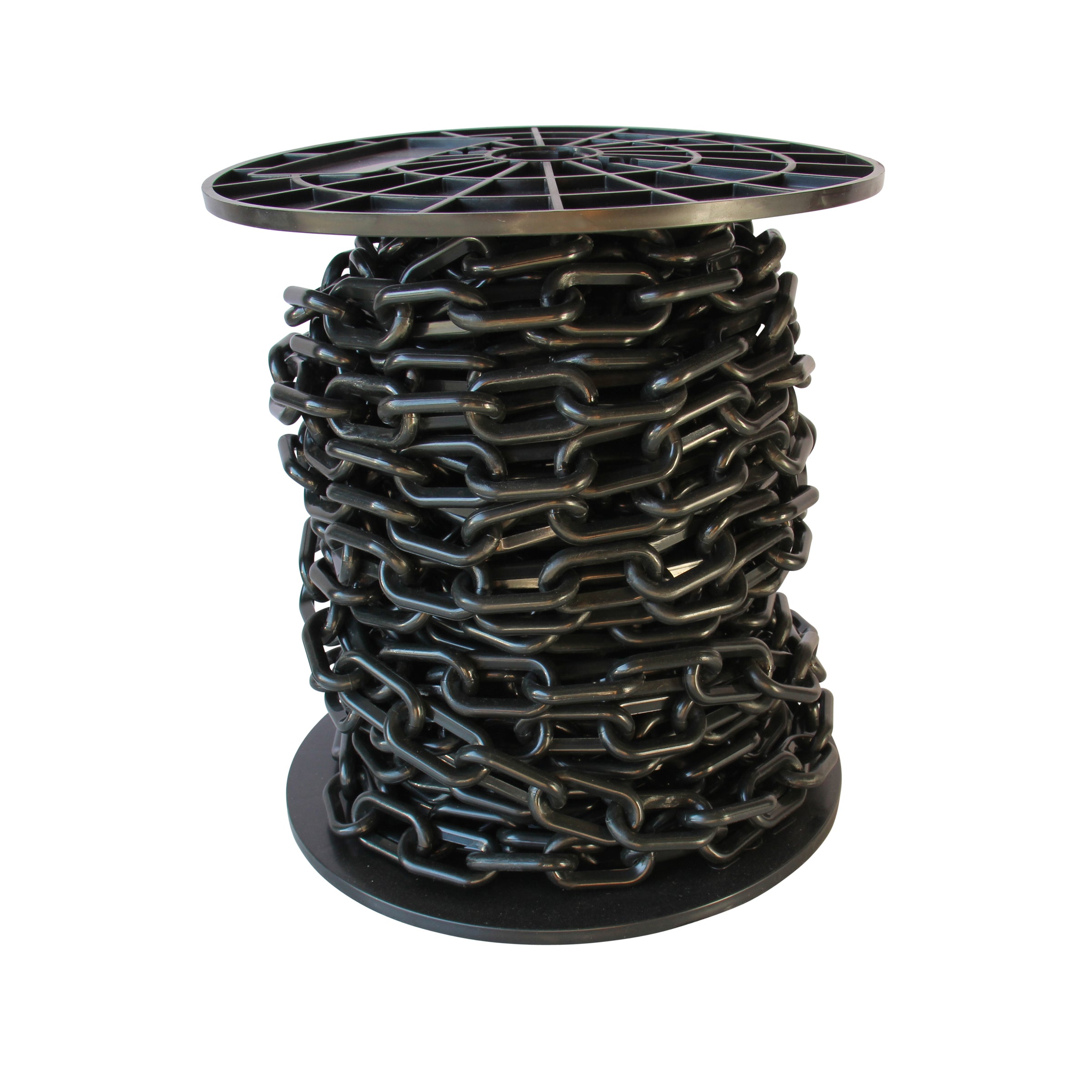

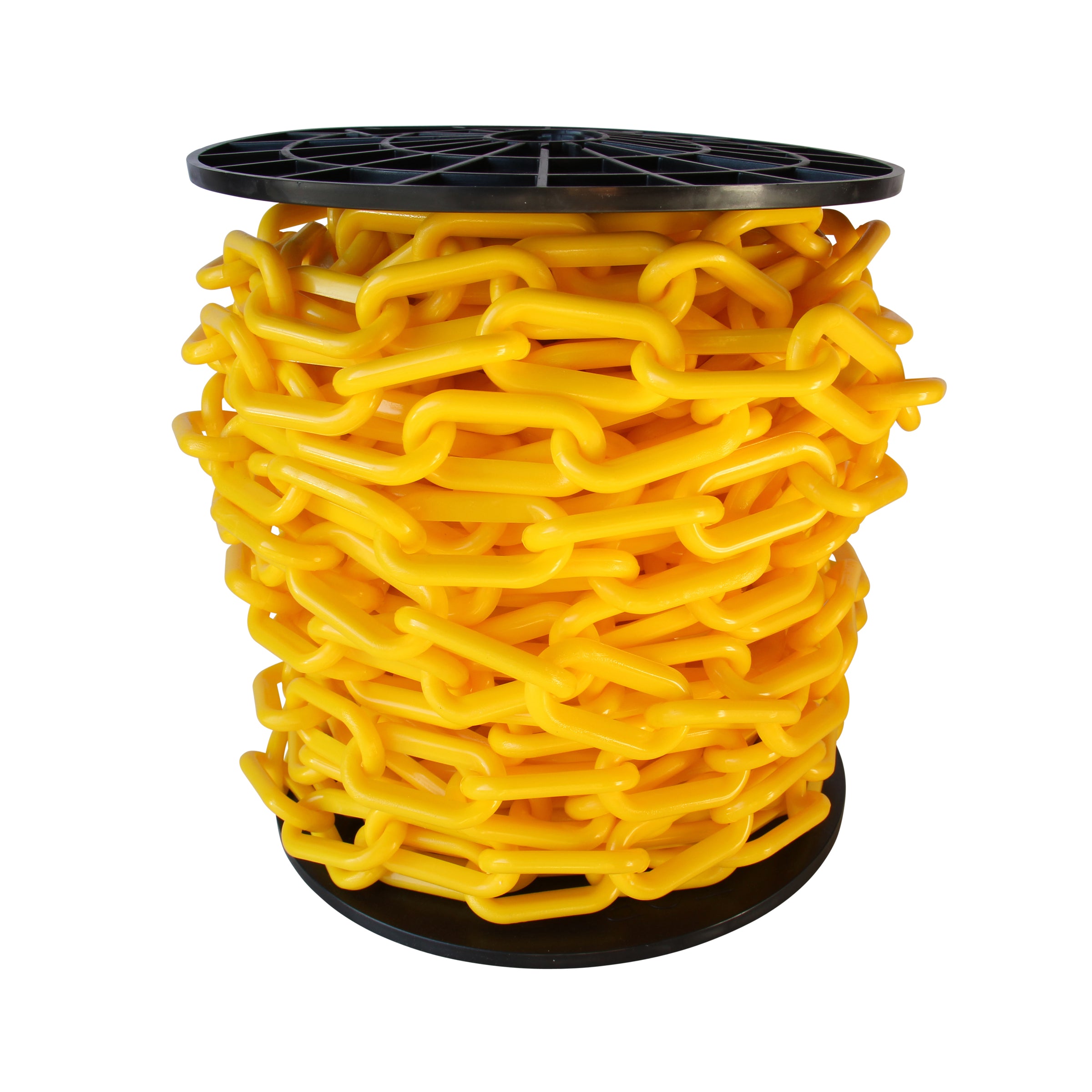

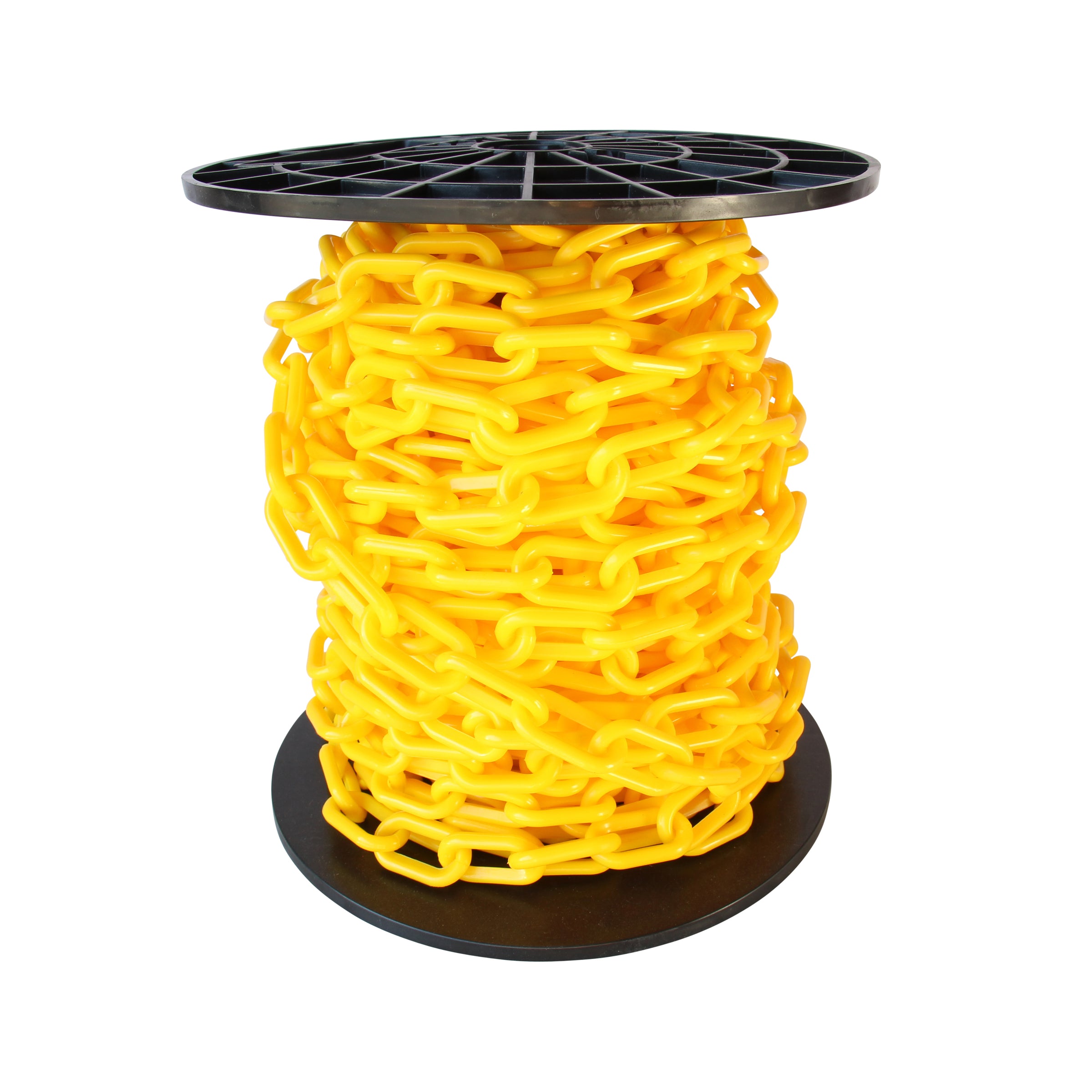

Chain PL55-U Standard Link Barrier Chain with Oval Unwelded Plastic links

DESCRIPTION


• Max Weight: 33 lbs | Weight per Foot: 0.08 lbs
• Features: Unwelded, Standard Link Chain
• Material: Plastic

This item is available in Black, Red, White, Yellow

Chains are priced by the foot and this product will be supplied as a reel of one continuous chain.

LINK SIZE & SPECS
Link Size Gauge Length (in) Width (in) Thickness (in) Max Load (lbs) Weight per Foot (lbs)
U35 3 1.38 0.79 0.24 22 0.03
U50 1 1.97 0.94 0.31 33 0.03

The “weight per foot” signifies the weight of a 1-foot section the respective chain, not the weight a 1 ft section can sustain. For example, if you order 8 ft of a chain that weights 0.25 lbs/ft, the total weight of that chain will be 2 lbs.

The “max load” is the amount of weight a chain can safely hold, regardless of how long it is. When selecting a chain, we recommend calculating the total weight of chain based on the length you need, like in the example above. Make sure that your total hanging weight (= total weight of fixture + total weight of chain) does not exceed the stated weight capacity.


Variant Spec Sheet (PDF)
U35 u35_spec_sheet.pdf
U50 u50_spec_sheet.pdf
Click Here for Chain Connectors
