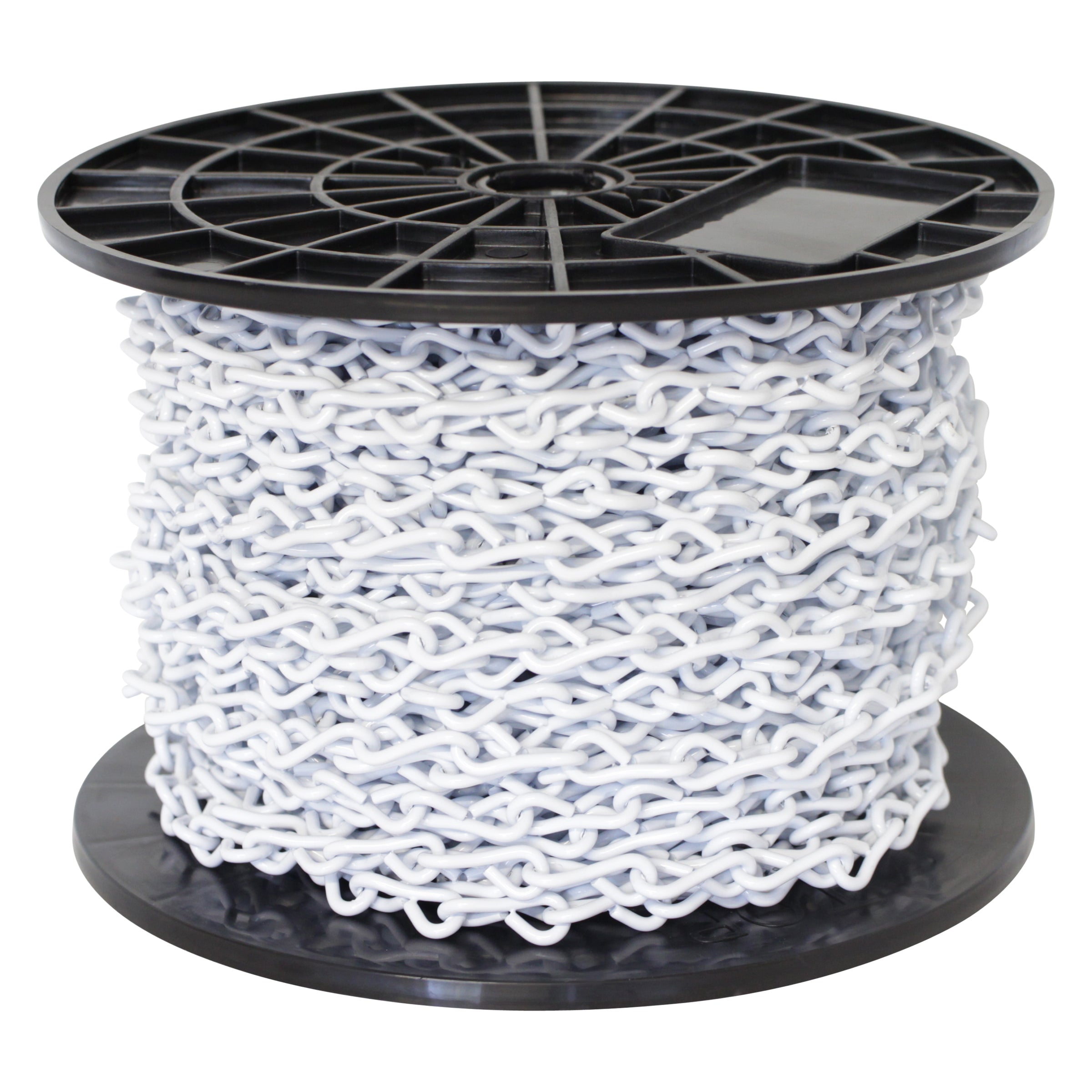

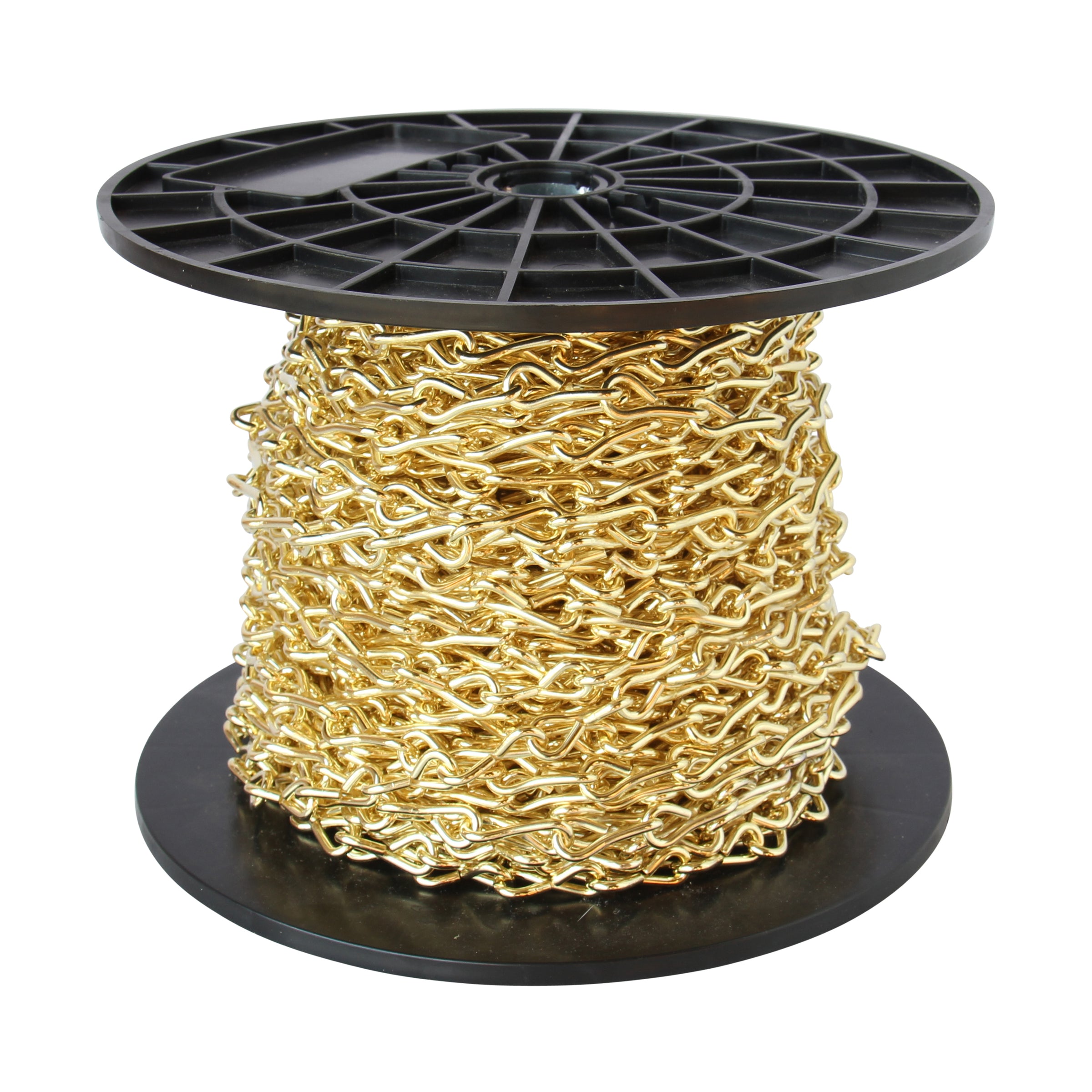

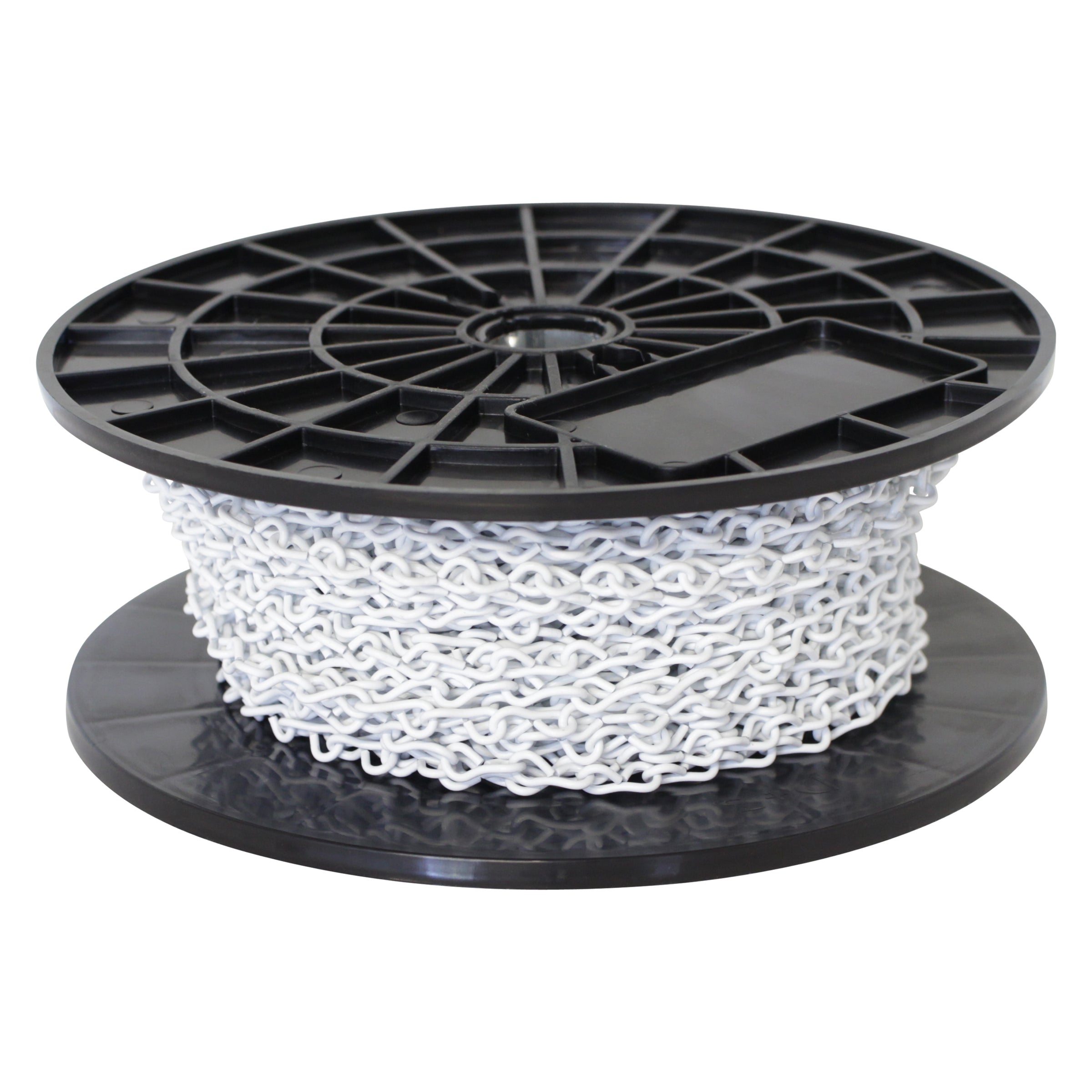

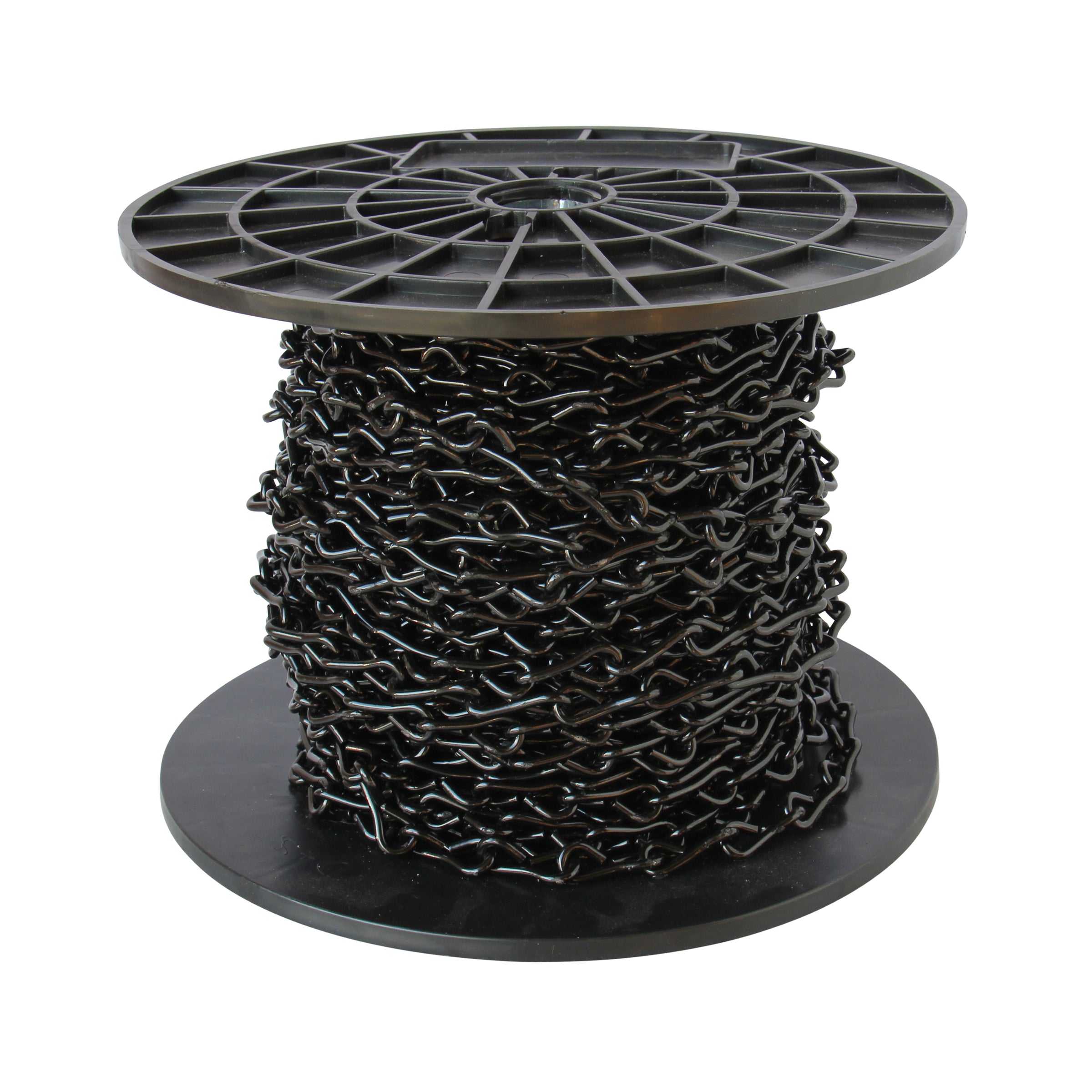

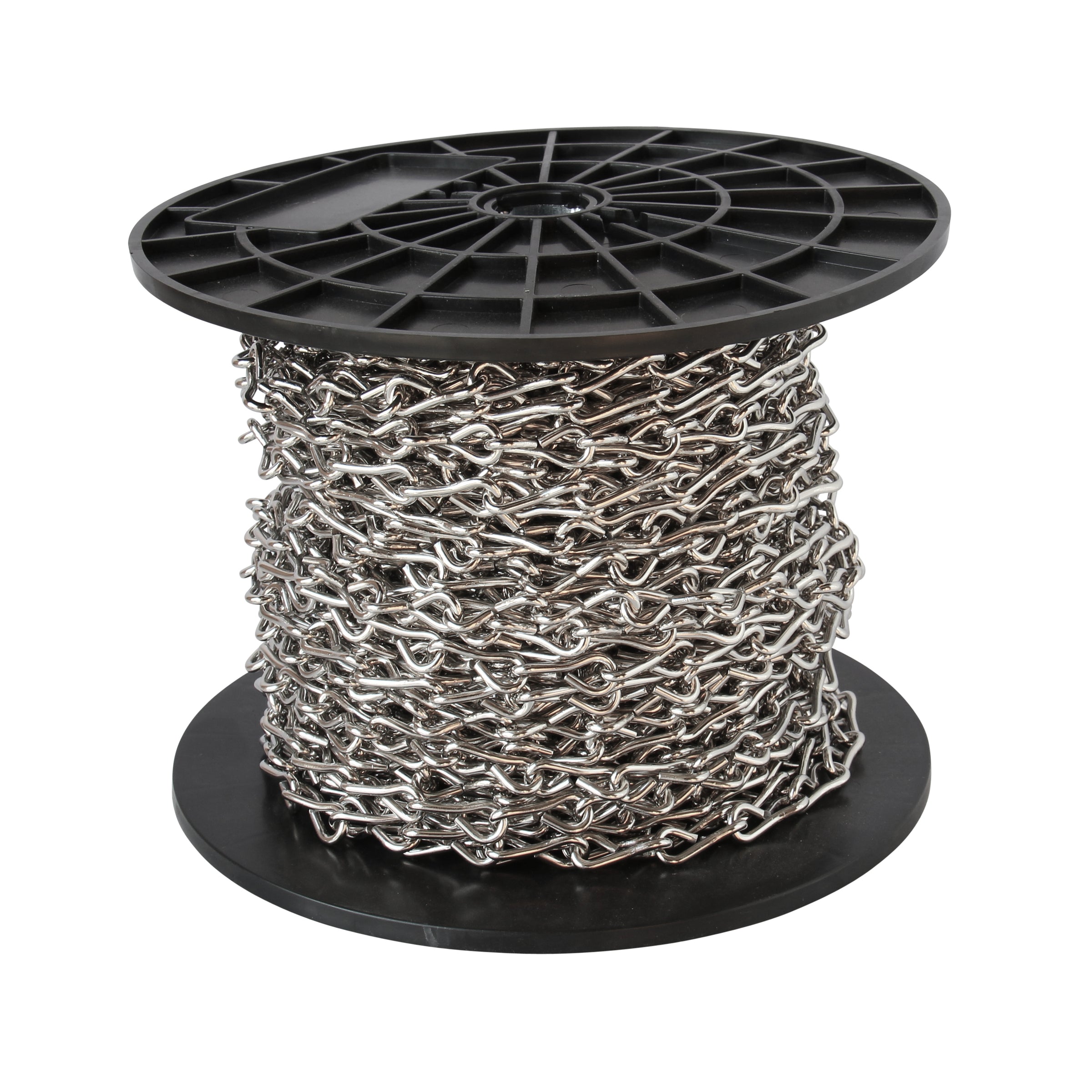

[Reel CH-ST50-U25] Steel Single Jack Basket Chain (164FT-REEL)
Chain ST50-U Single Jack Basket Chain with Unwelded Steel links
DESCRIPTION
• Max Weight: 29 lbs | Weight per Foot: 0.08 lbs
• Features: Unwelded, Single Jack Chain
• Material: Steel
This item is available in Antique Brass, Antique Copper, Black, Copper, Gunmetal, Polished Brass, Polished Chrome, Polished Nickel, White
Chains are priced by the foot and this product will be supplied as a reel of one continuous chain.
LINK SIZE & SPECS
| Link Size | Gauge | Length (in) | Width (in) | Thickness (in) | Max Load (lbs) | Weight per Foot (lbs) |
|---|---|---|---|---|---|---|
| U15 | 16 | 0.59 | 0.31 | 0.06 | 12 | 0.03 |
| U25 | 13 | 0.98 | 0.39 | 0.08 | 29 | 0.09 |
The “weight per foot” signifies the weight of a 1-foot section the respective chain, not the weight a 1 ft section can sustain.
For example, if you order 8 ft of a chain that weights 0.25 lbs/ft, the total weight of that chain will be 2 lbs.
The “max load” is the amount of weight a chain can safely hold, regardless of how long it is.
When selecting a chain, we recommend calculating the total weight of chain based on the length you need, like in the example above.
Make sure that your total hanging weight (= total weight of fixture + total weight of chain) does not exceed the stated weight capacity.
| Variant | Spec Sheet (PDF) |
|---|---|
| U15 | u15_spec_sheet.pdf |
| U25 | u25_spec_sheet.pdf |
Click Here for Chain Connectors
