[Chain BR07-U] Brass Standard Link Chandelier Chain | 2 Sizes

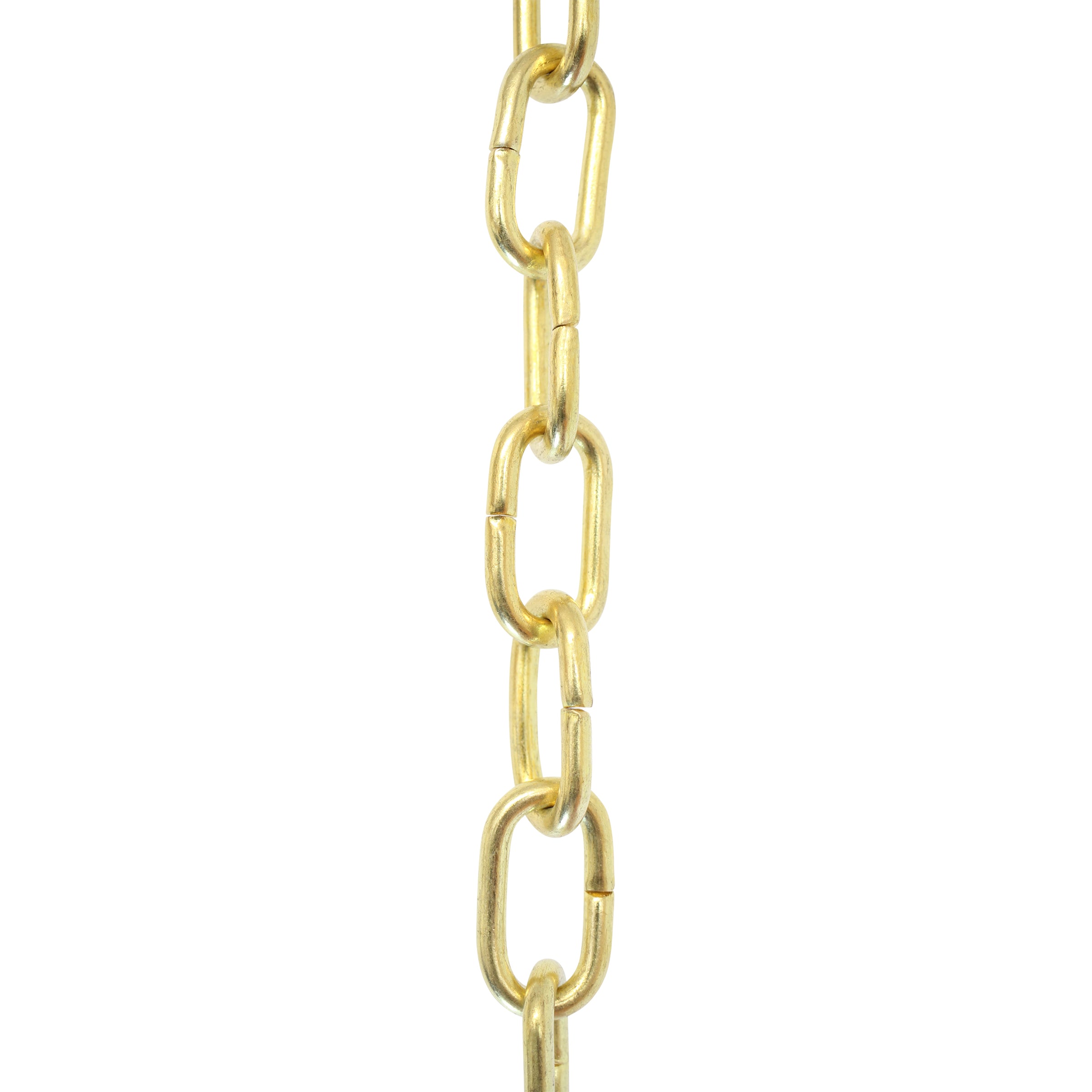

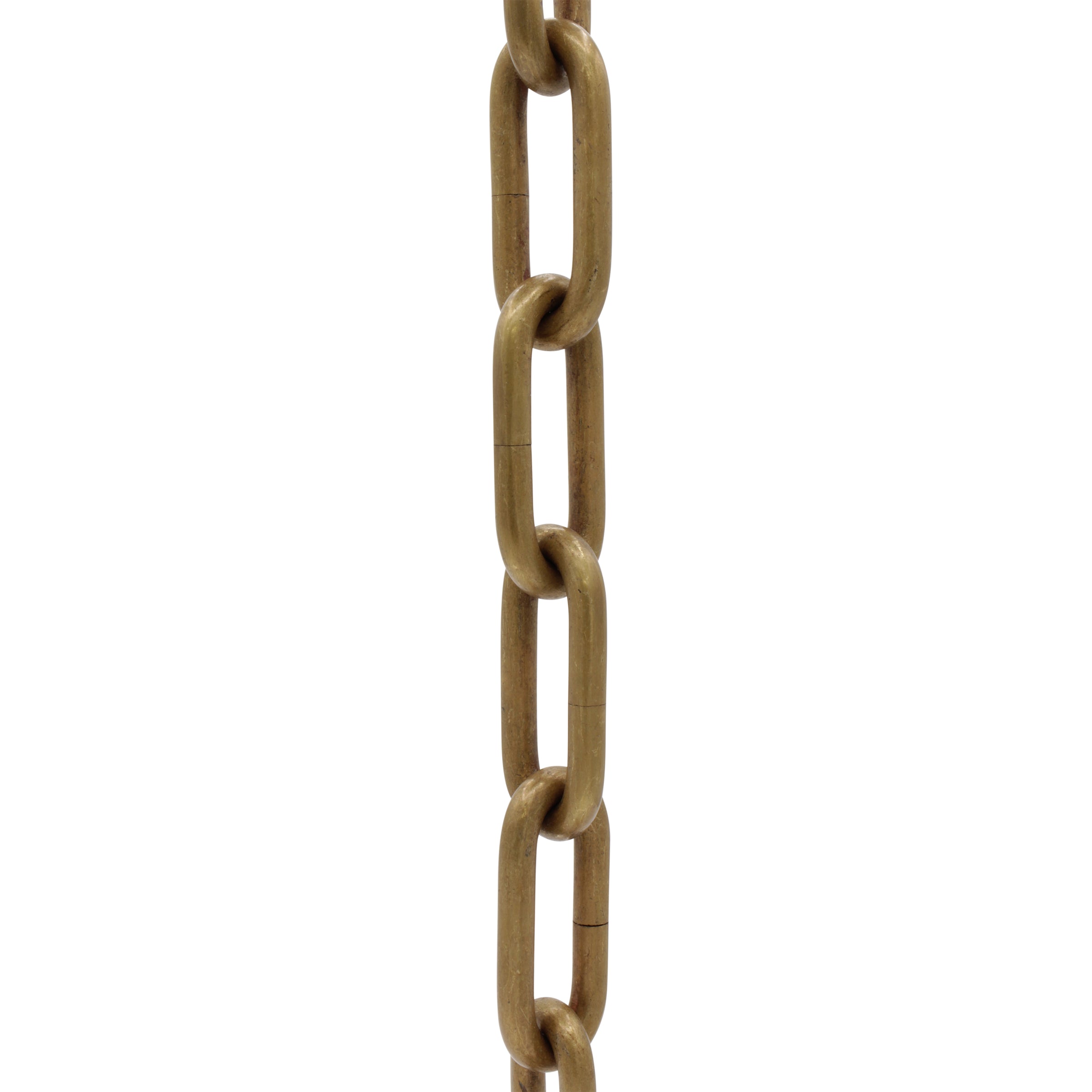

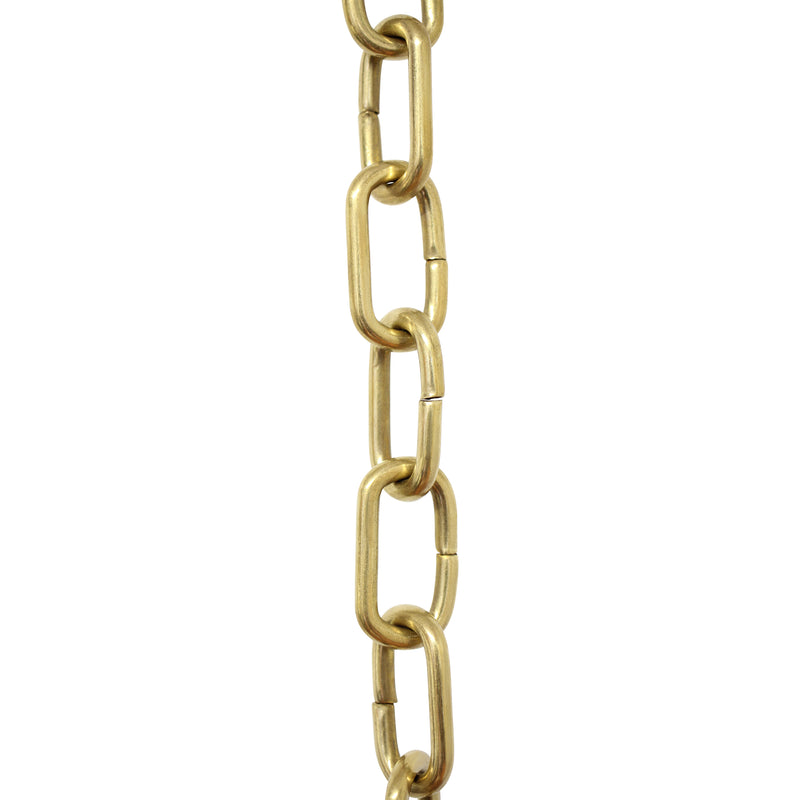

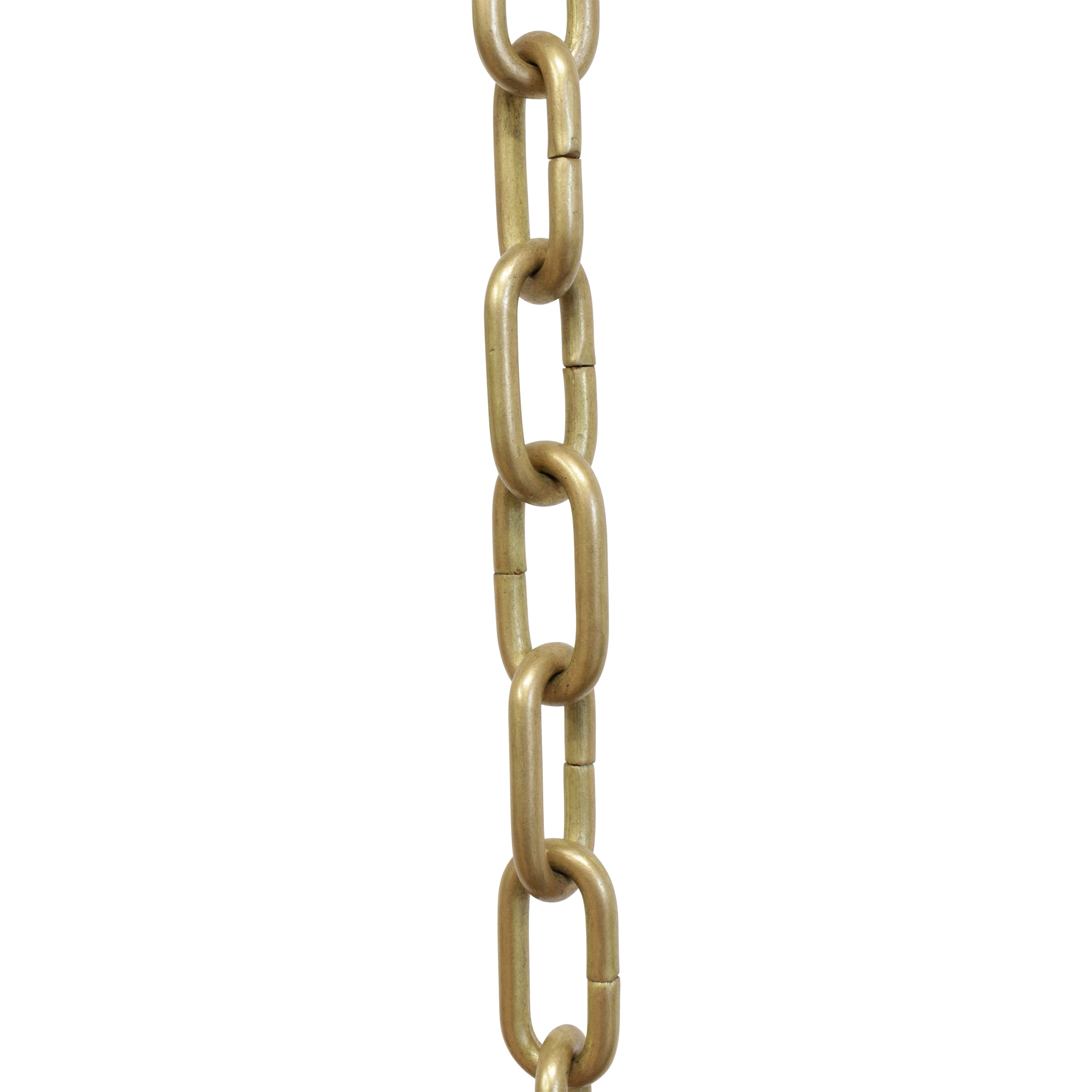

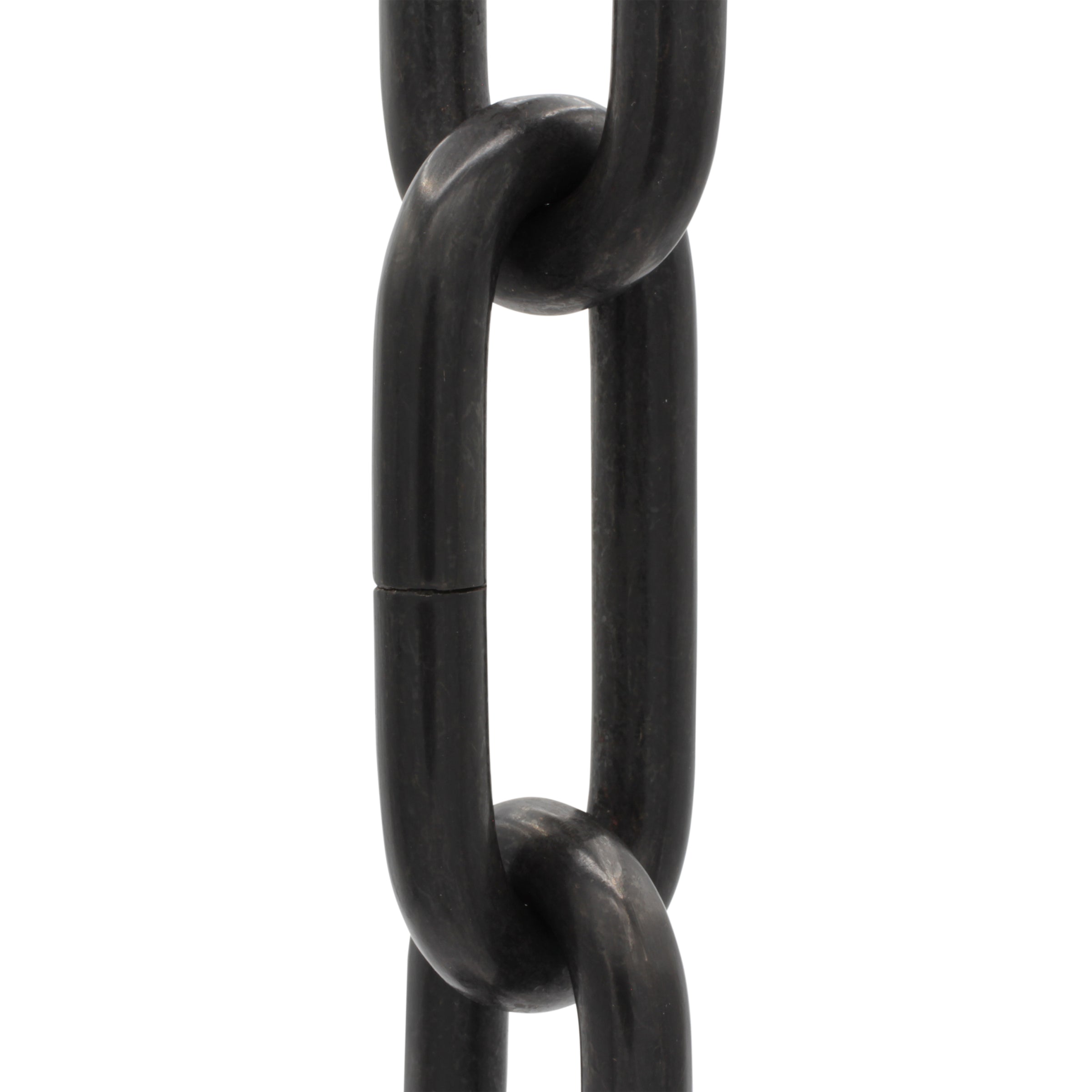

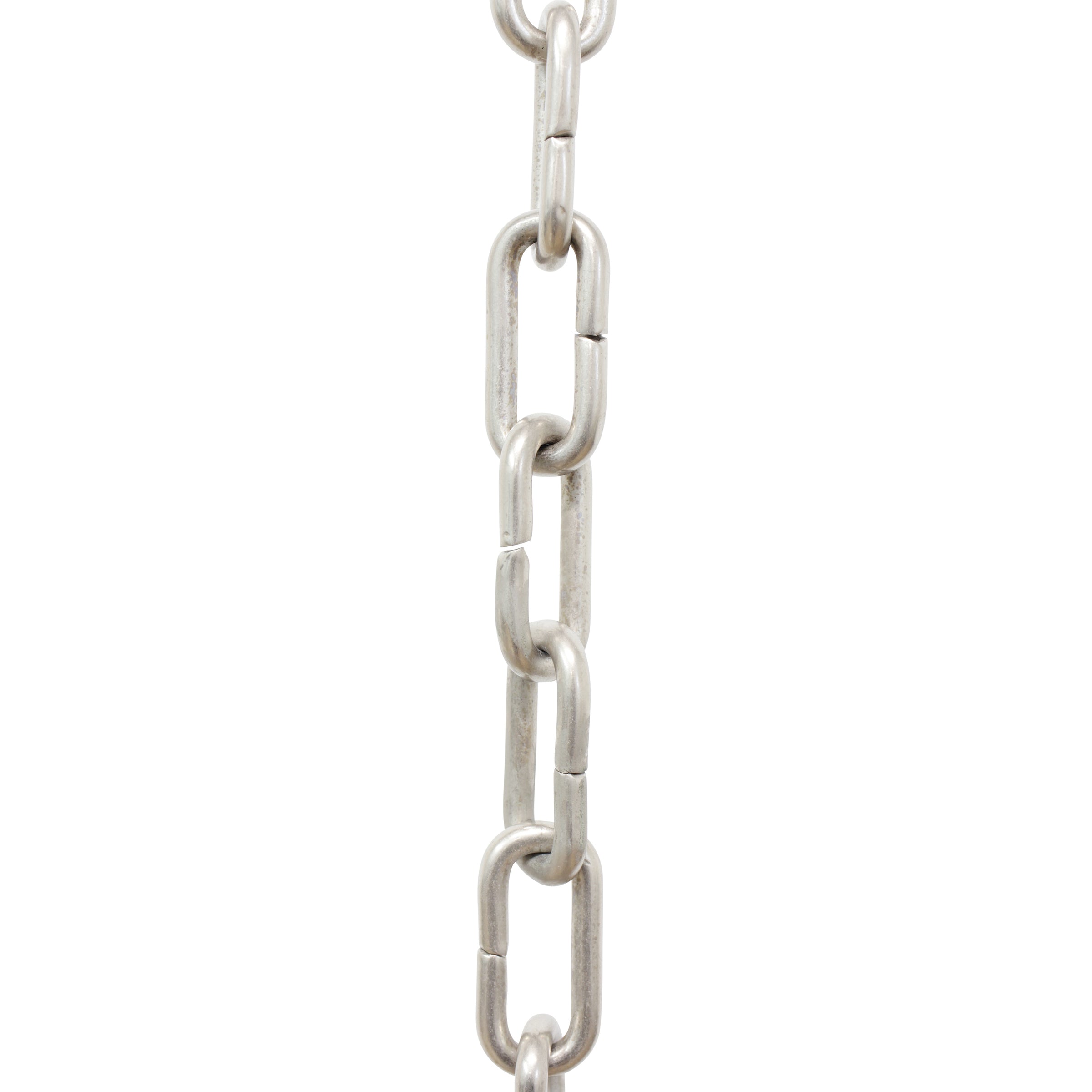

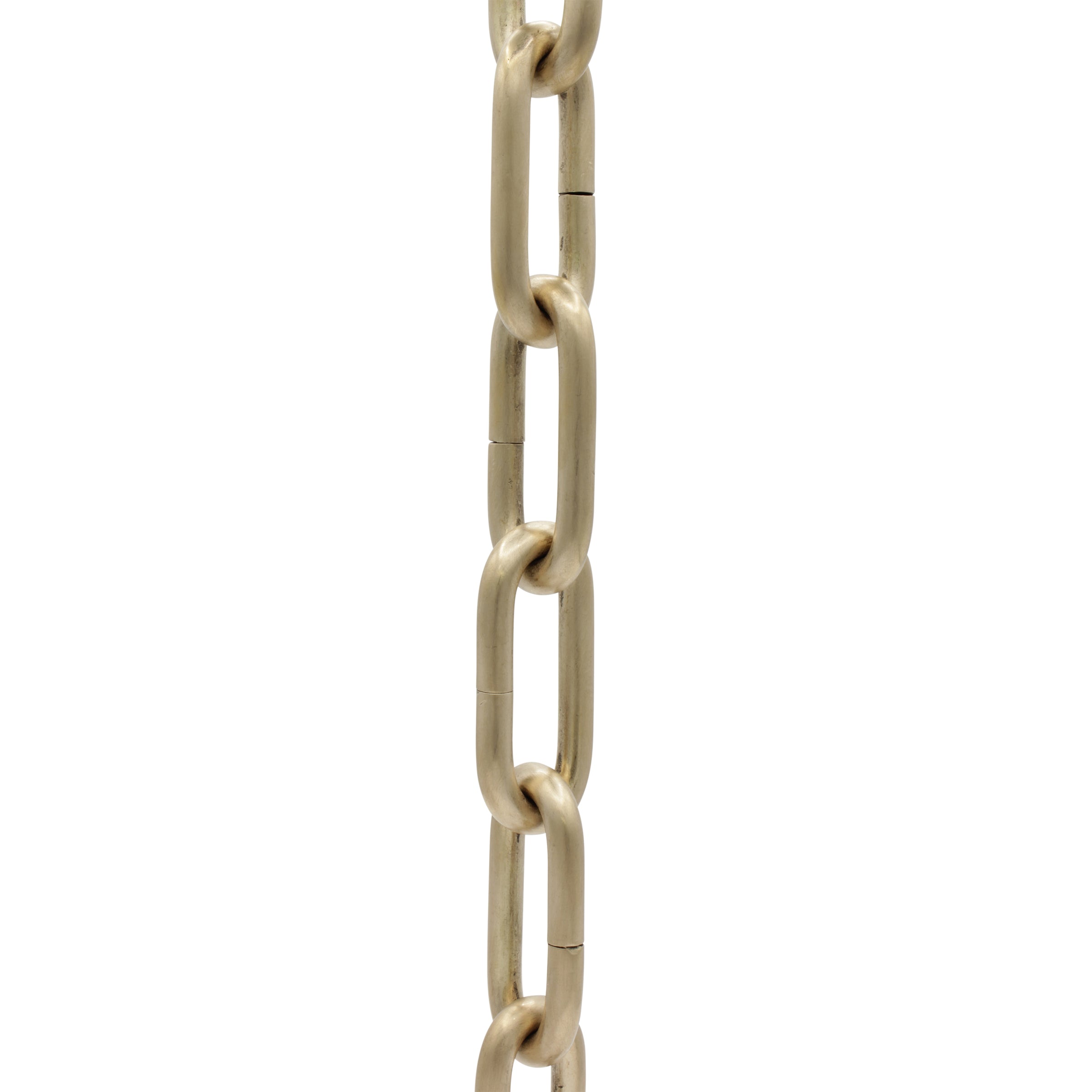

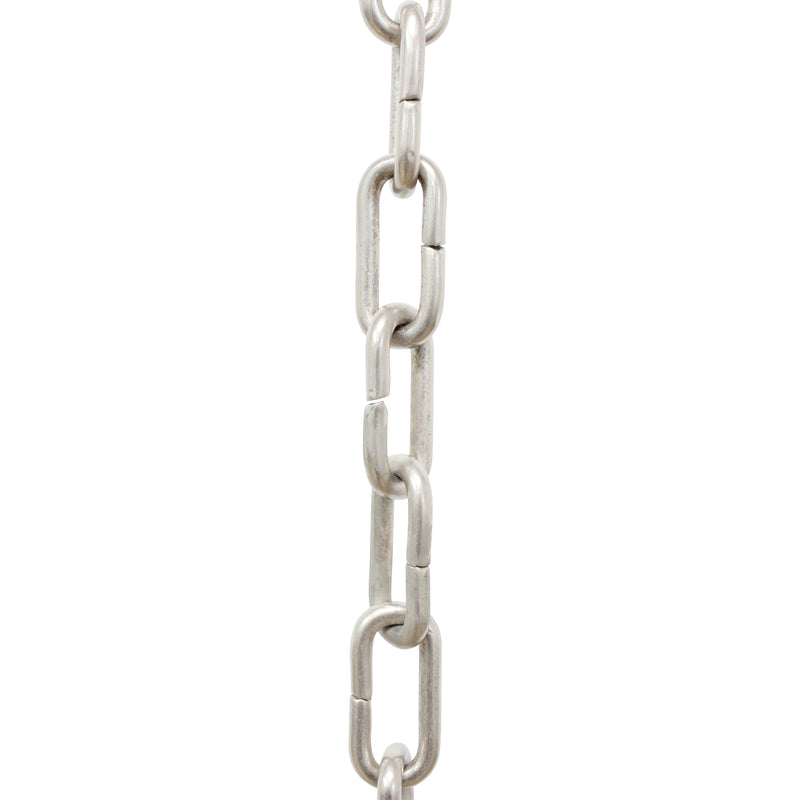

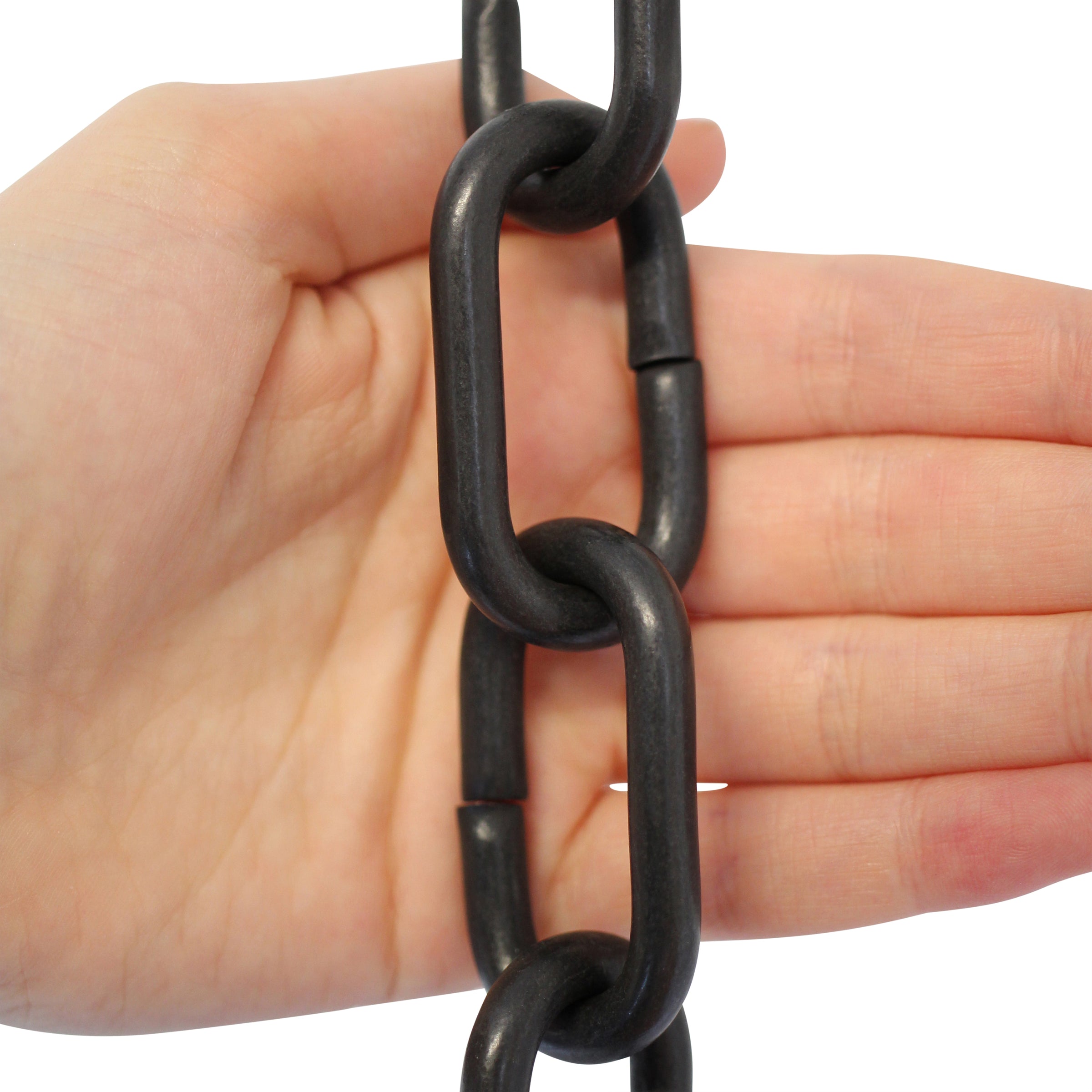

Chain BR07-U Standard Link, Coil Chandelier Chain with Unwelded Brass links
DESCRIPTION
• Max Weight: 64 lbs | Weight per Foot: 0.44 lbs
• Features: Unwelded, Coil Standard Link Chain
• Material: Brass

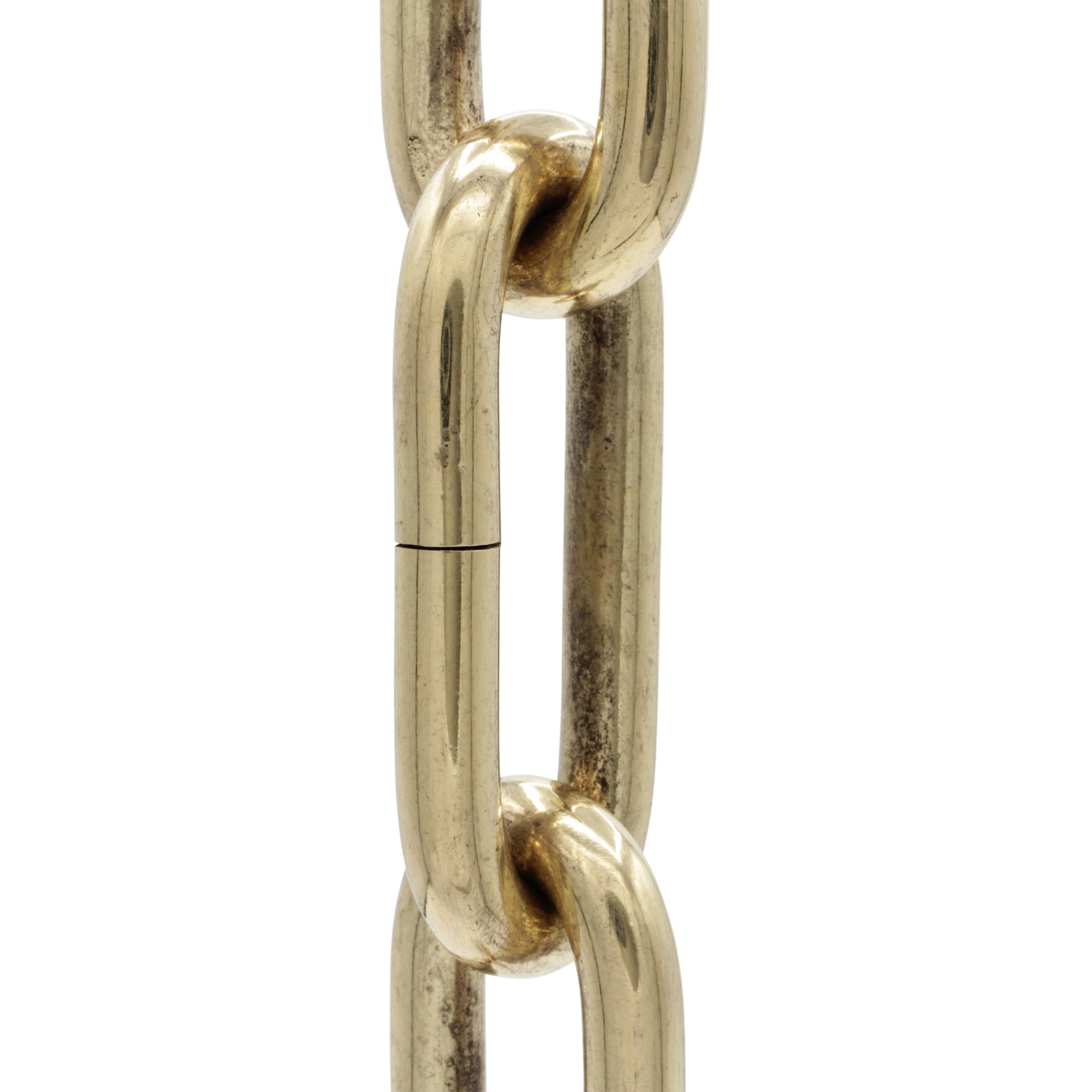

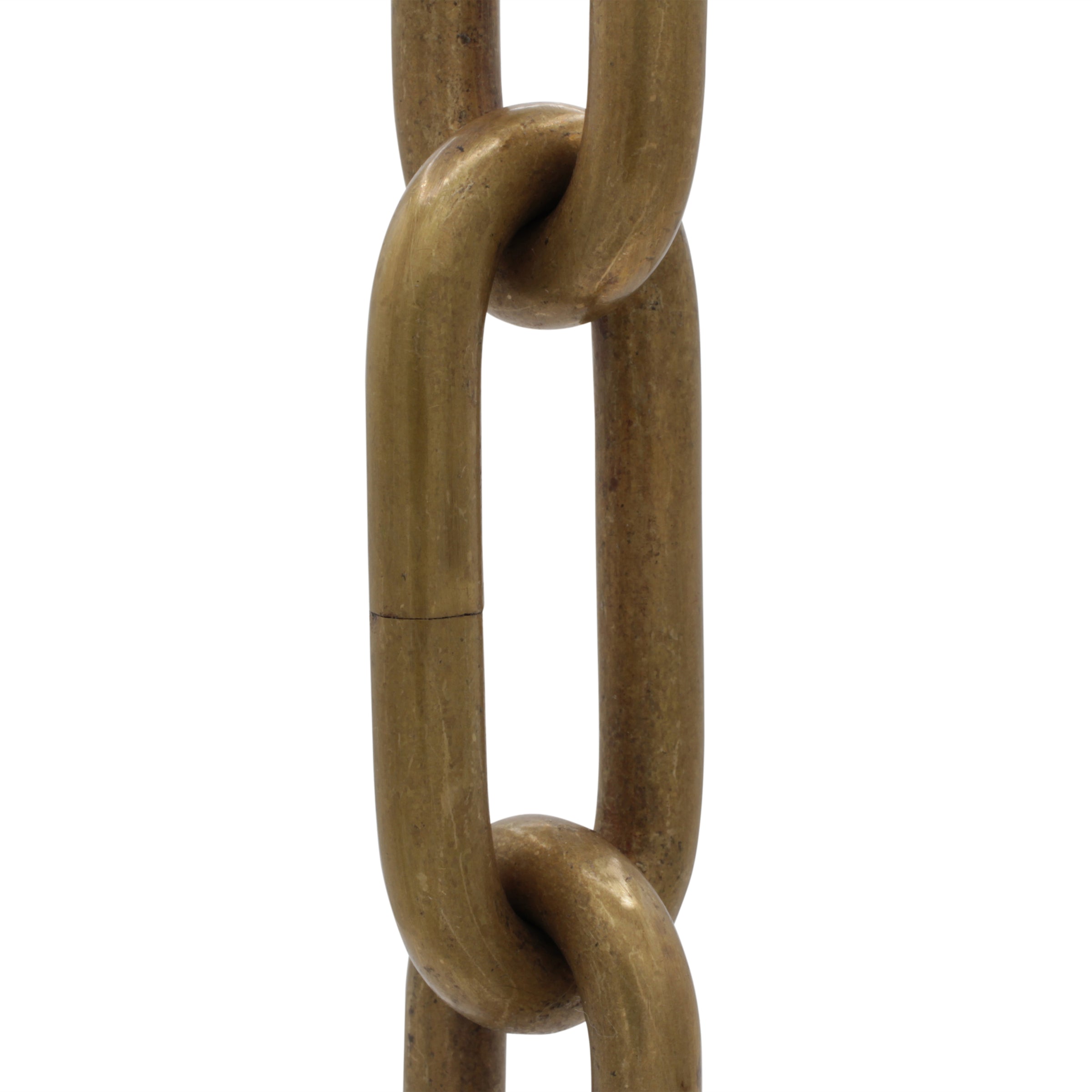

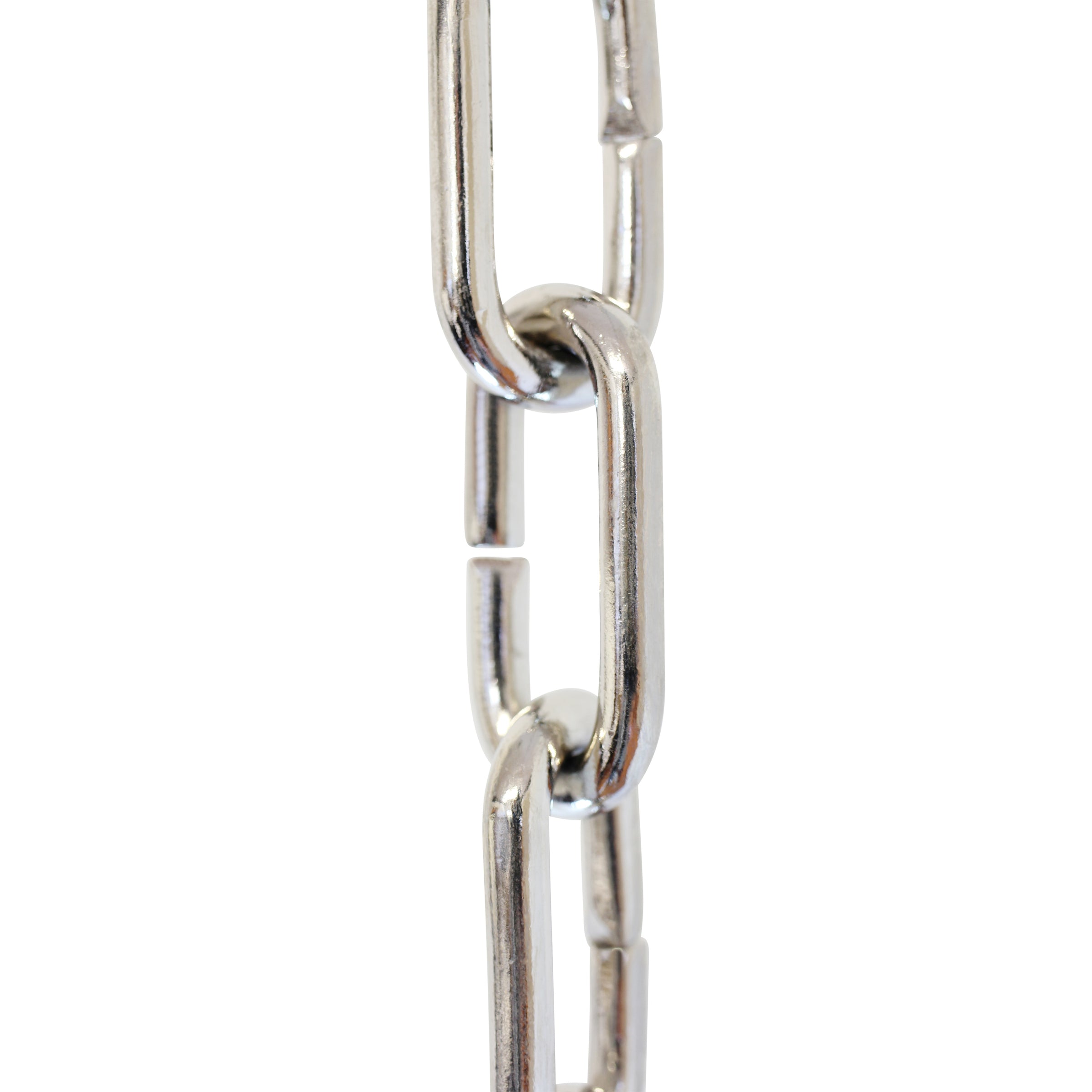

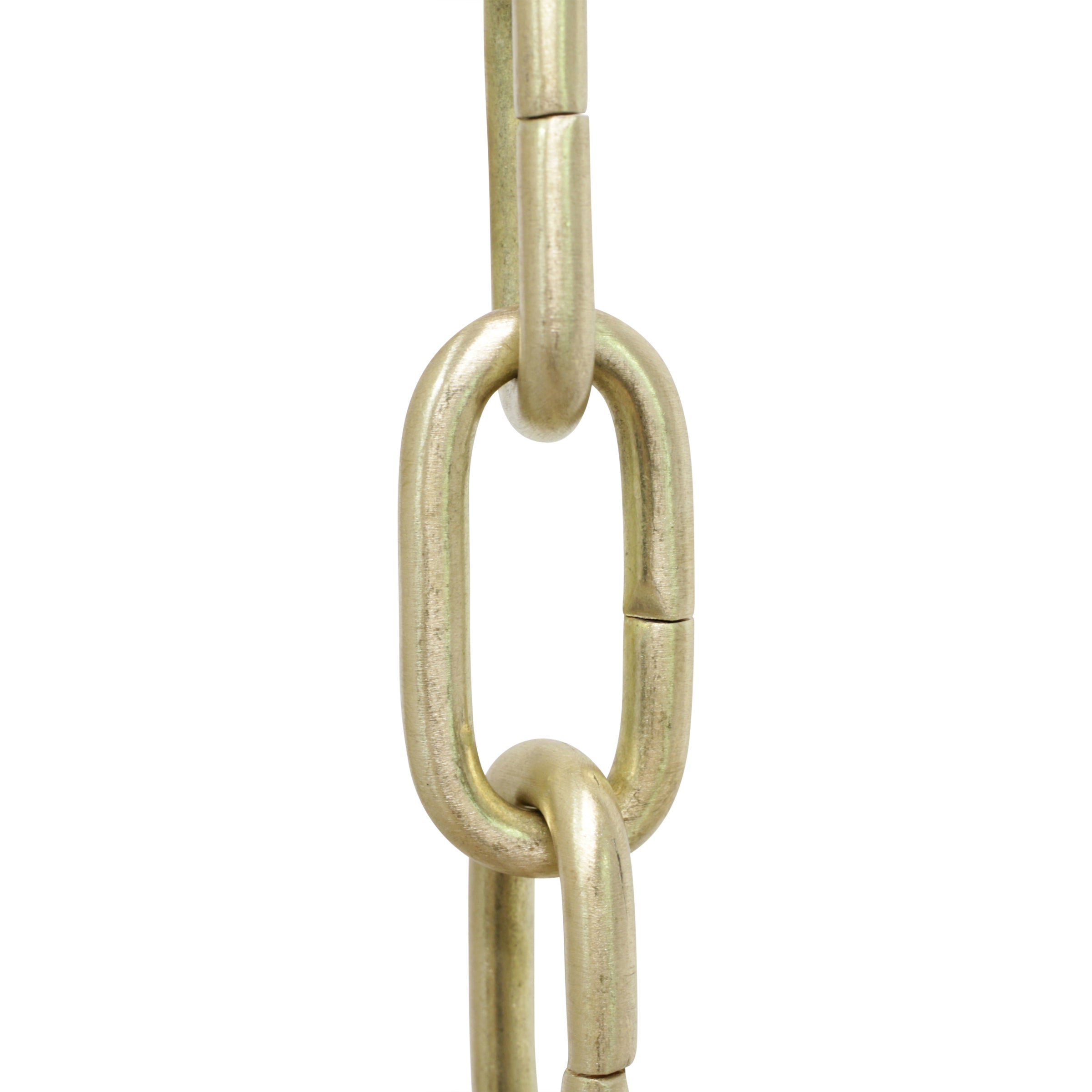

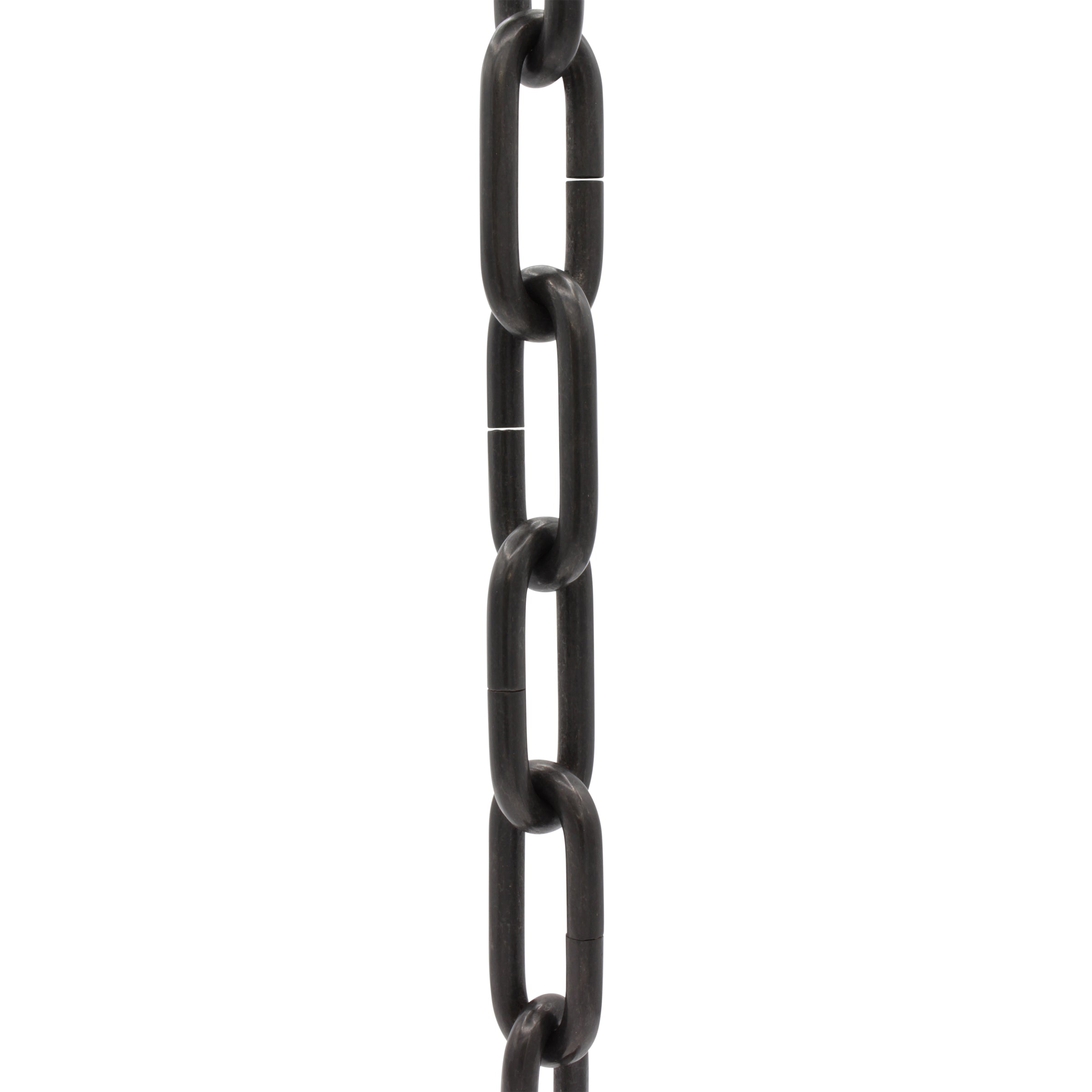

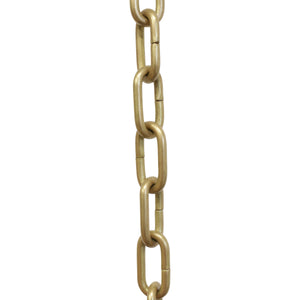

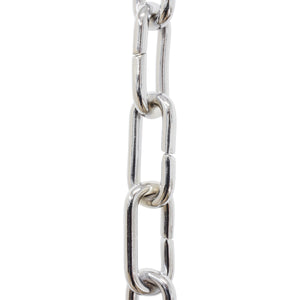

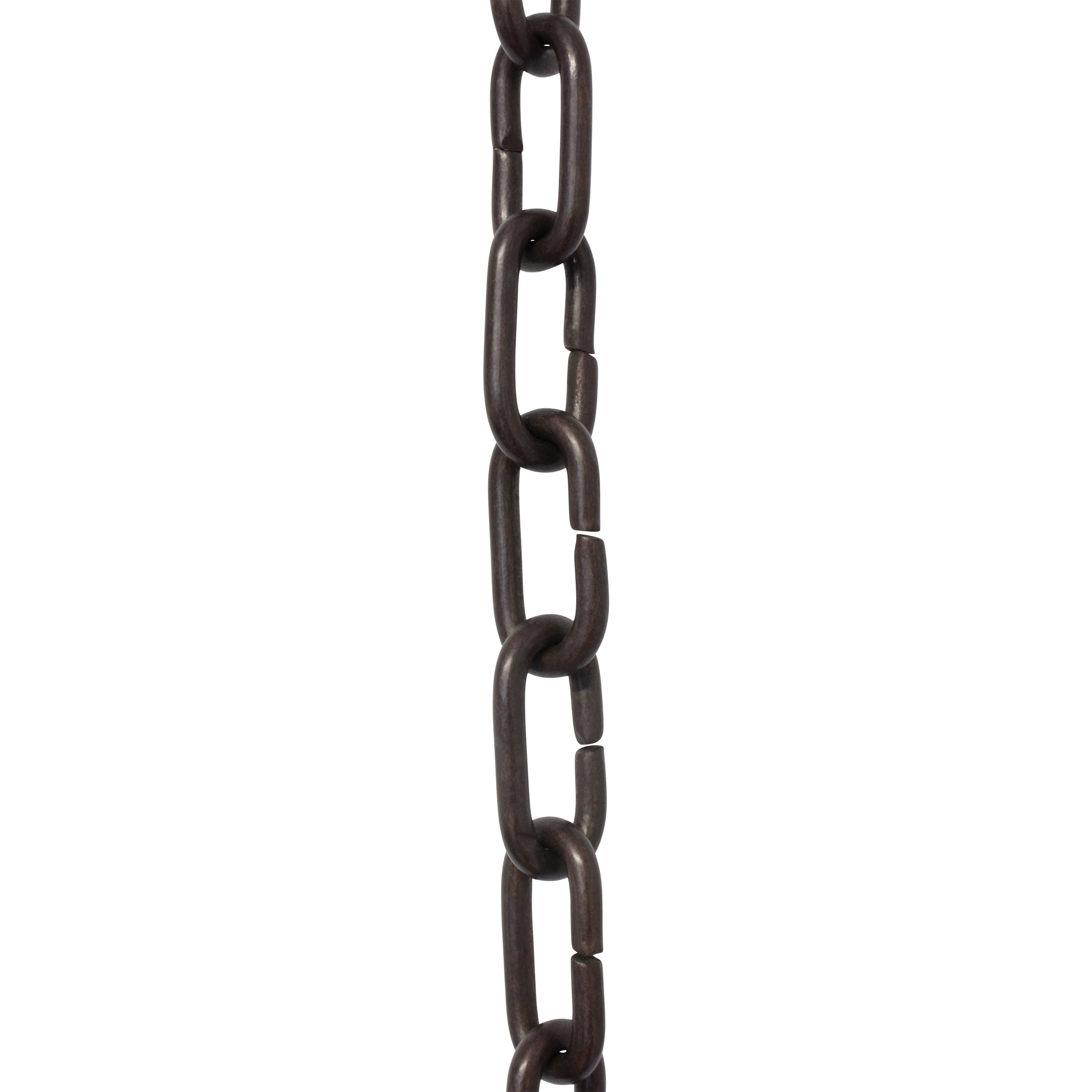

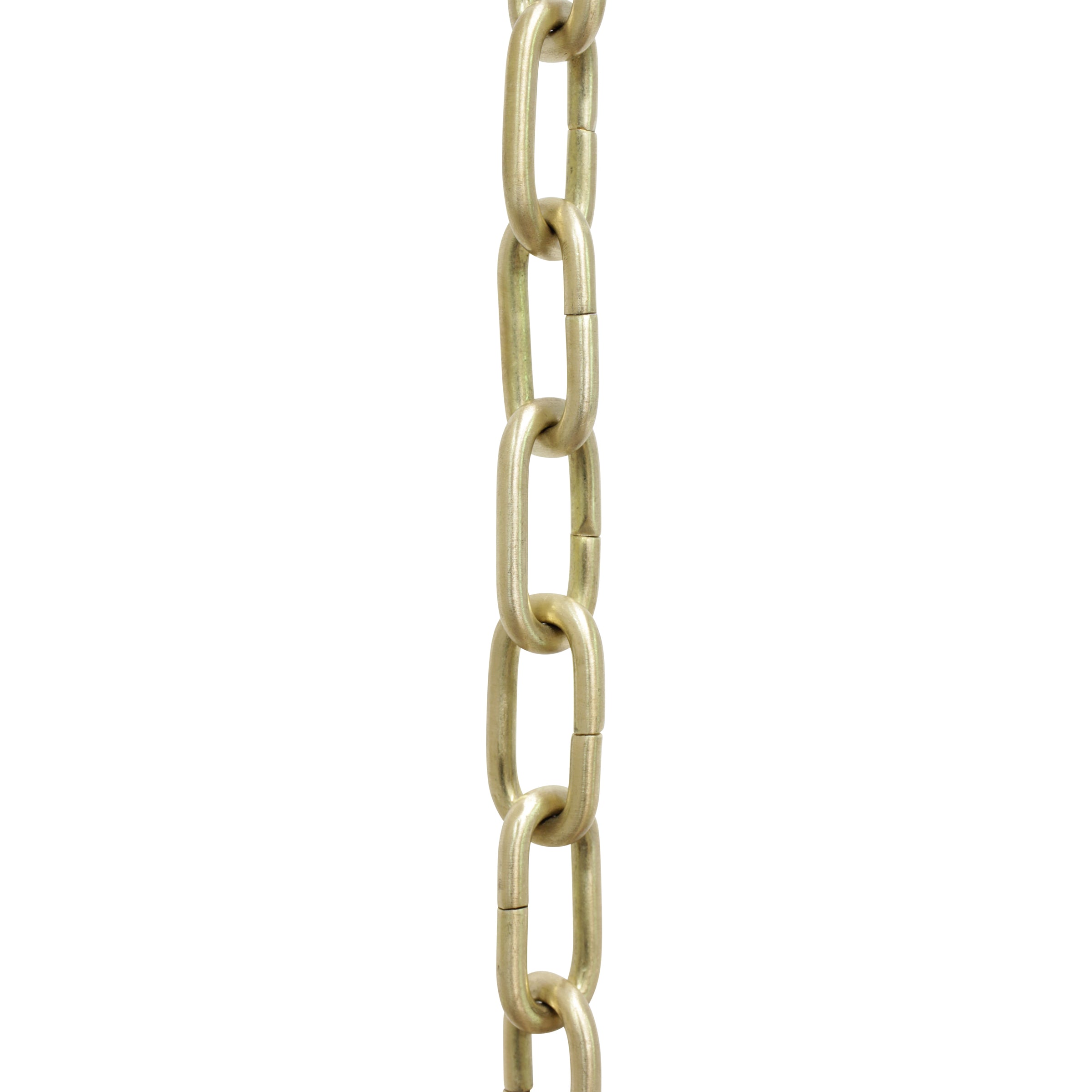

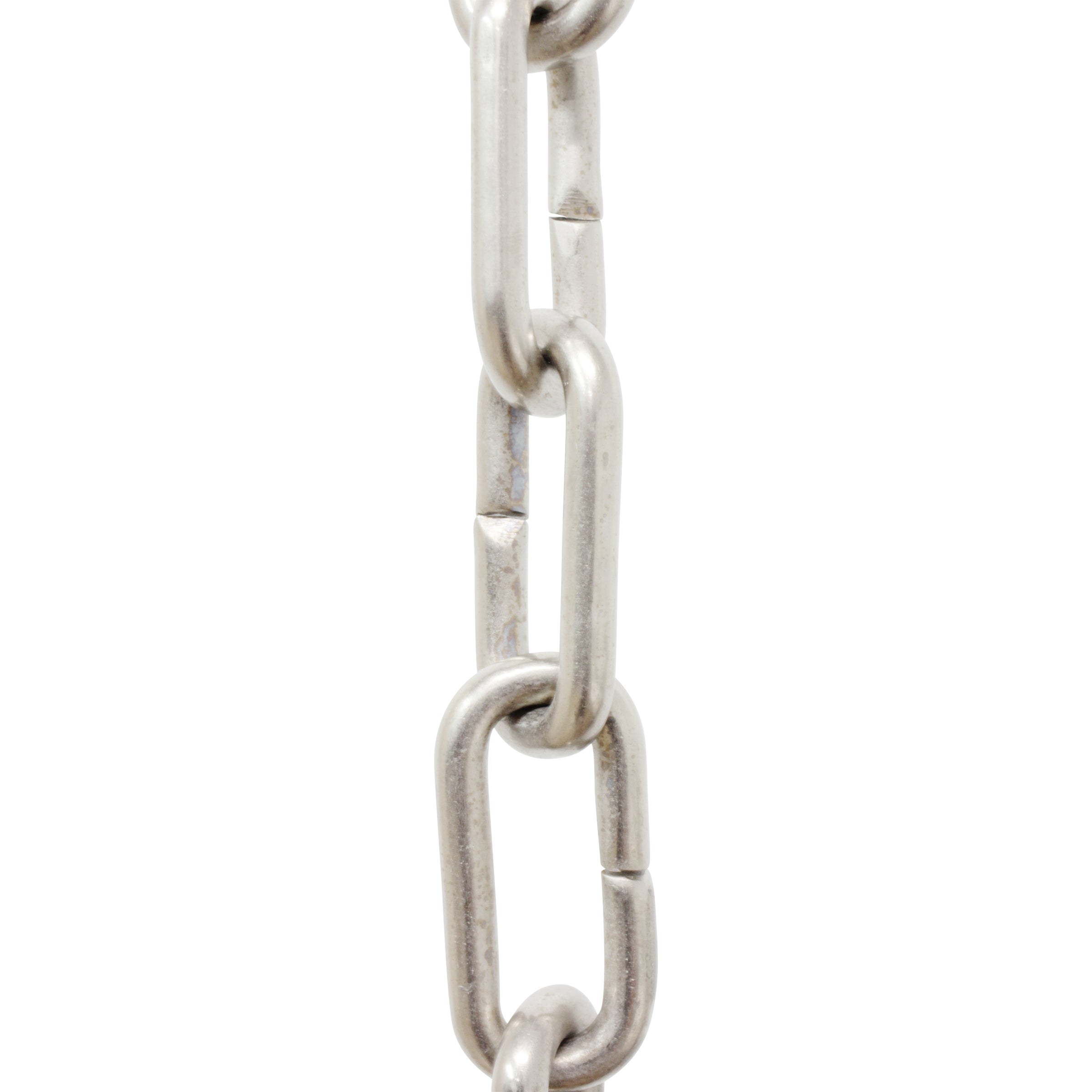

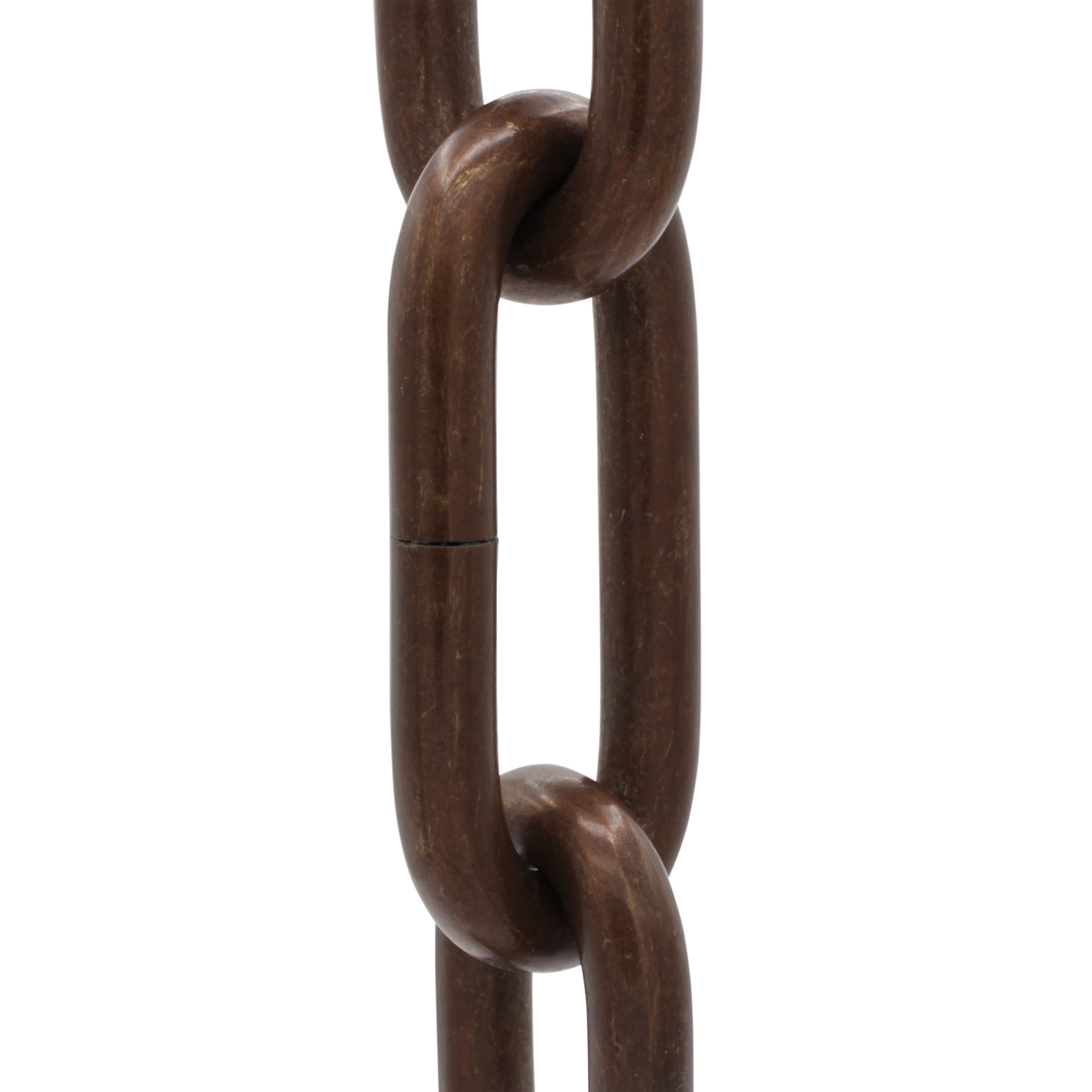

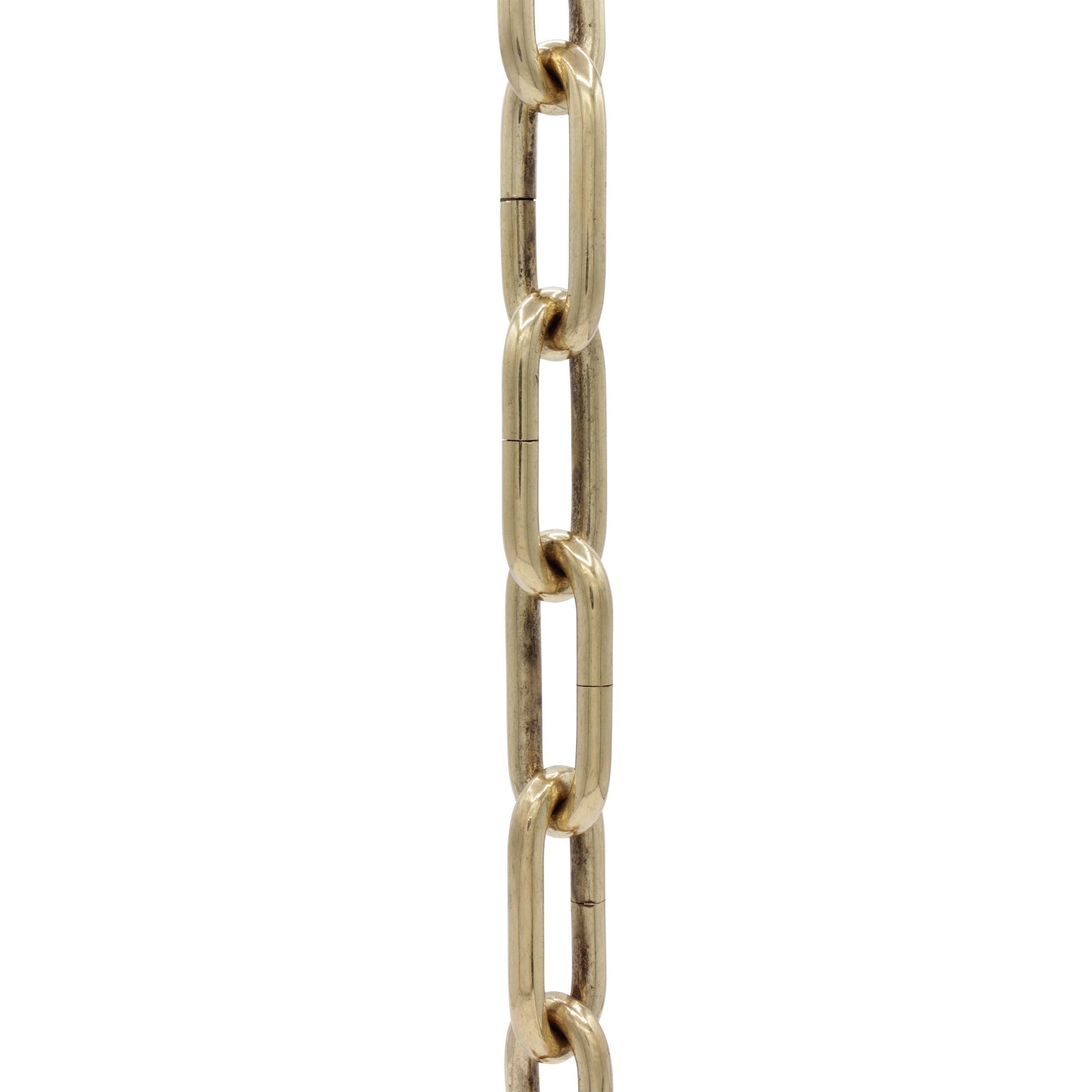

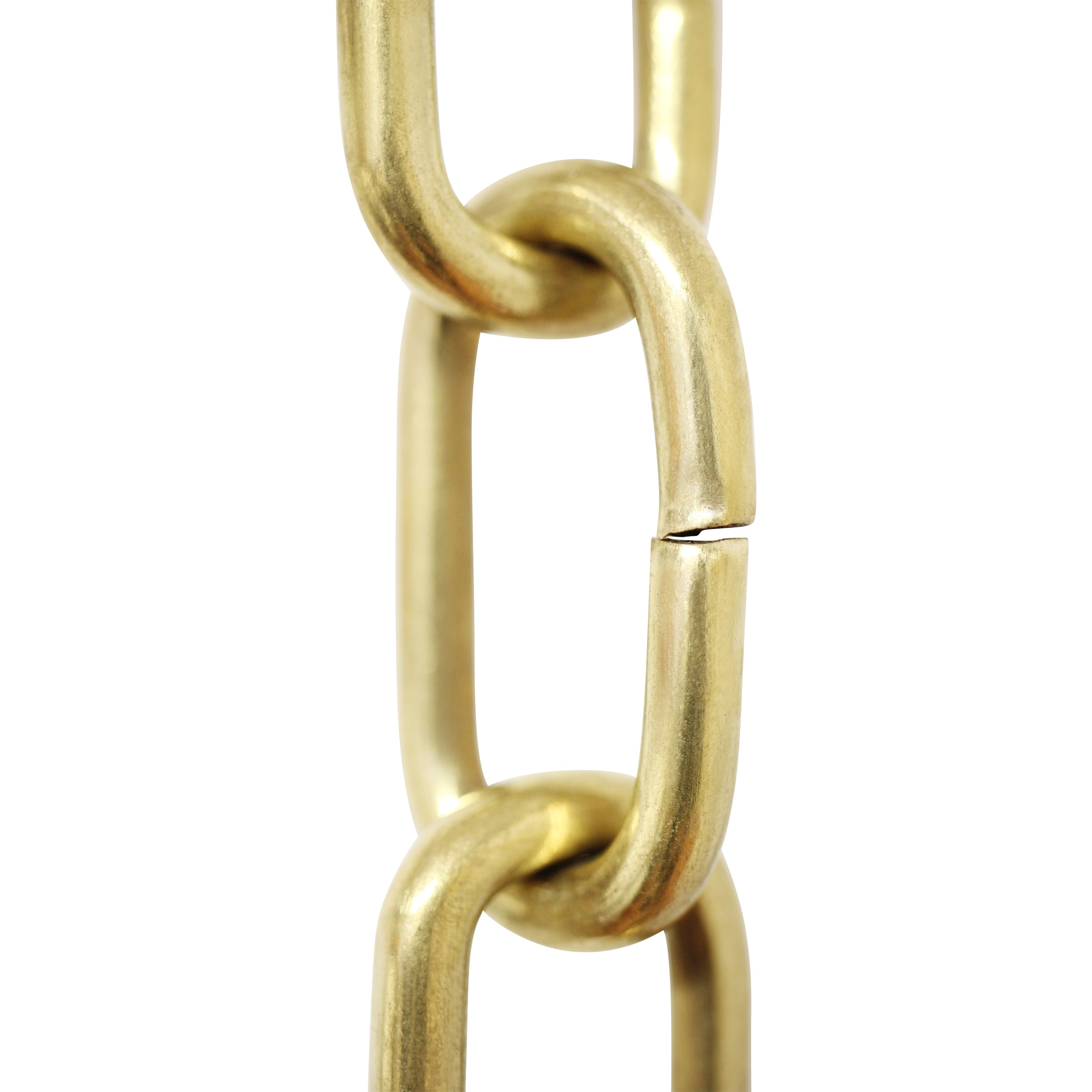

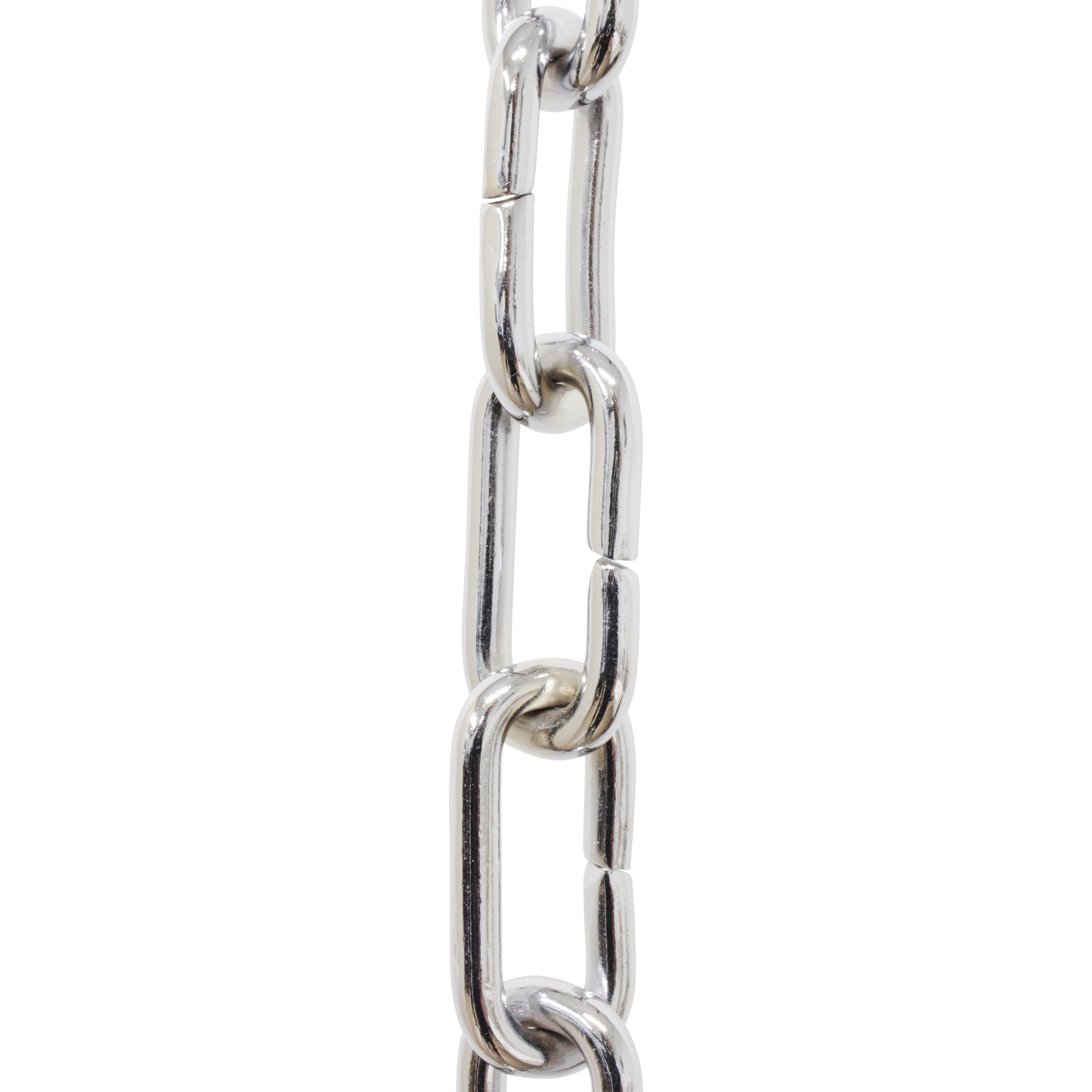

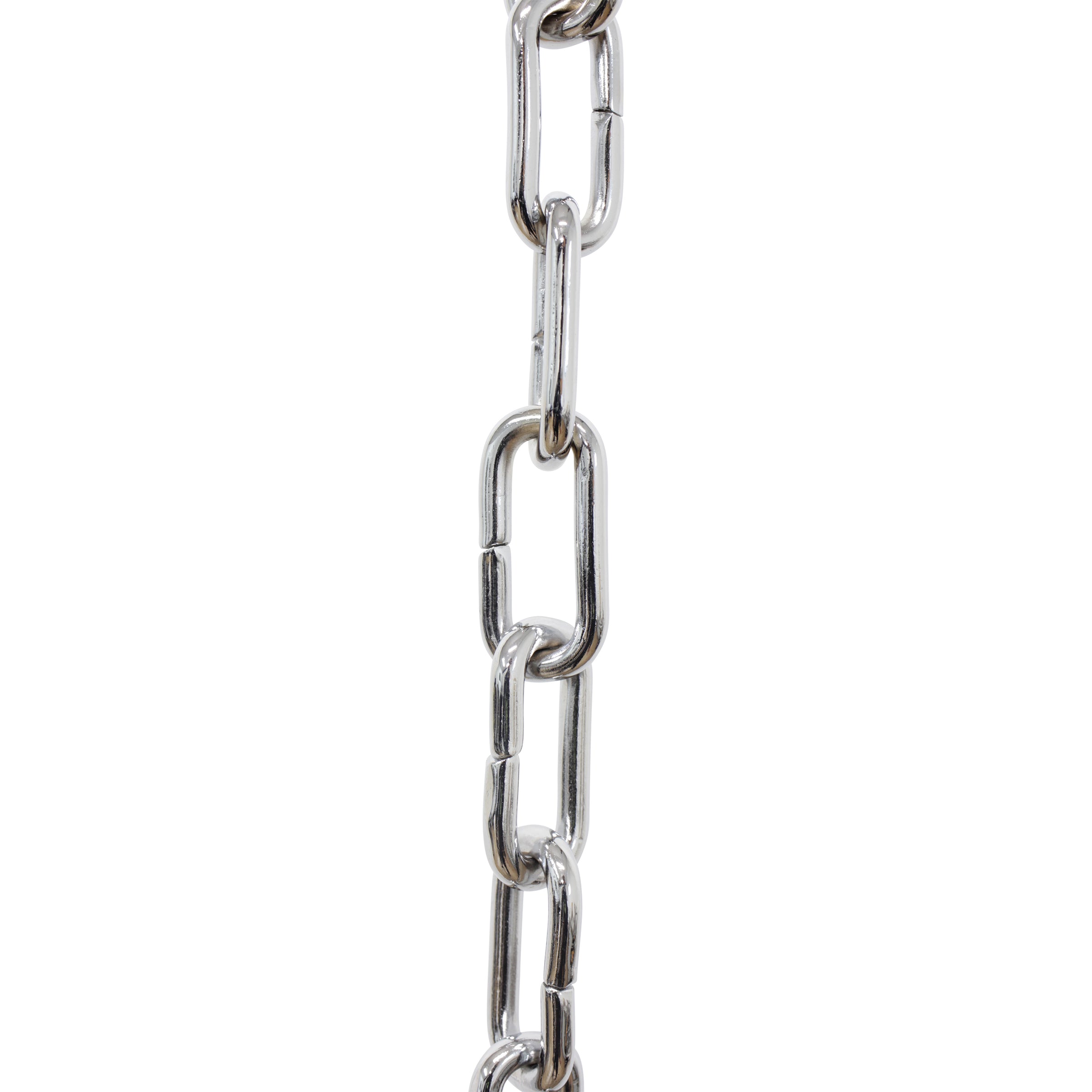

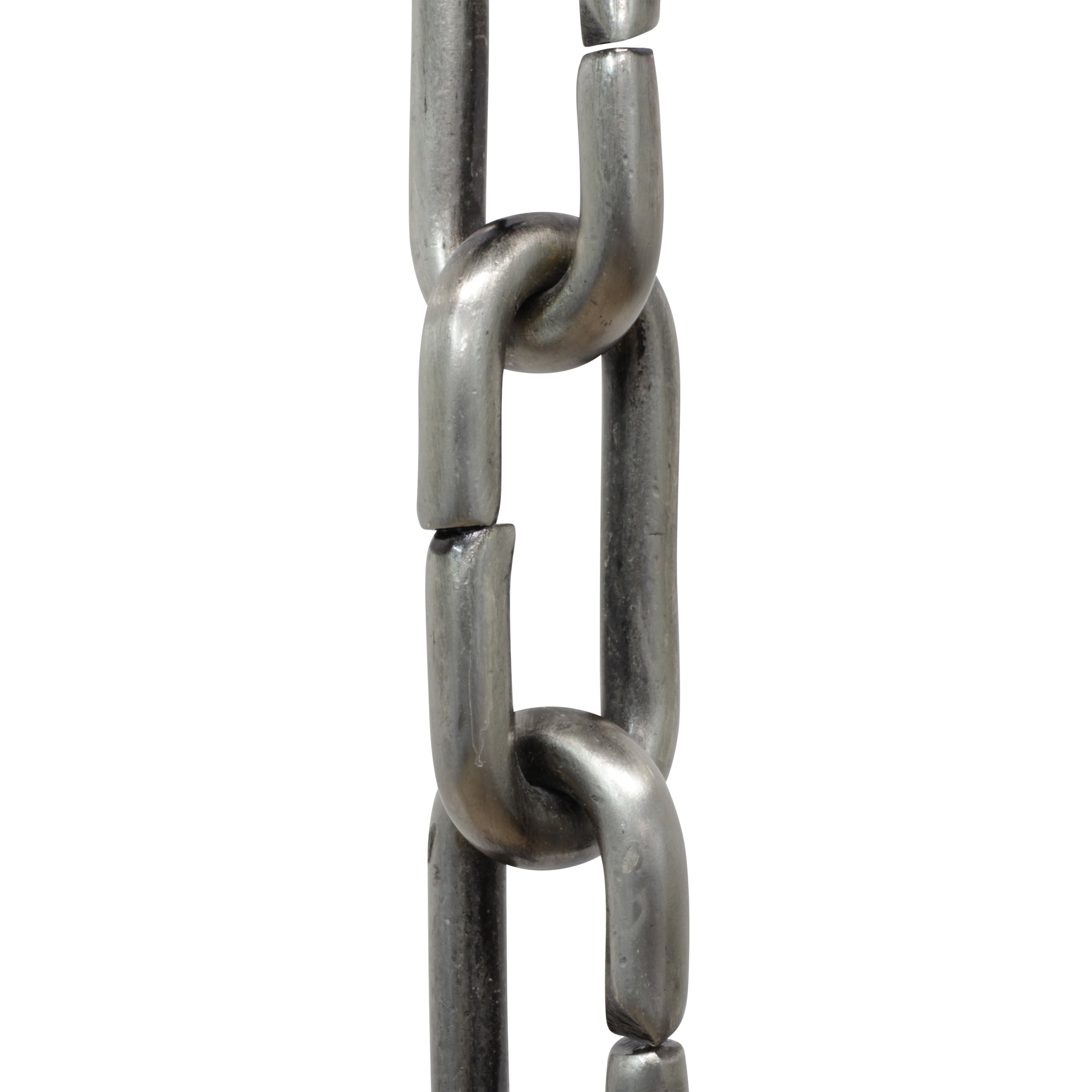

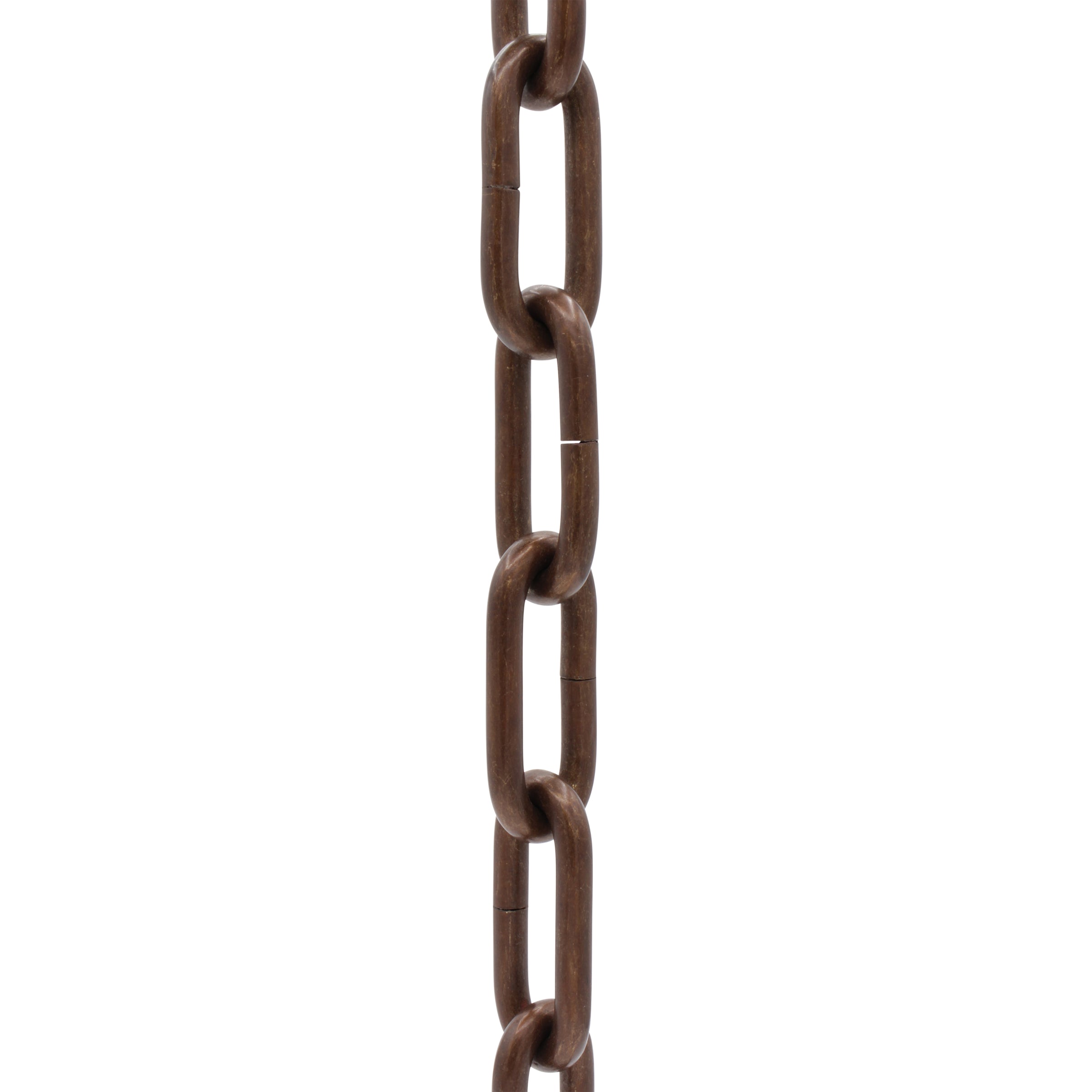

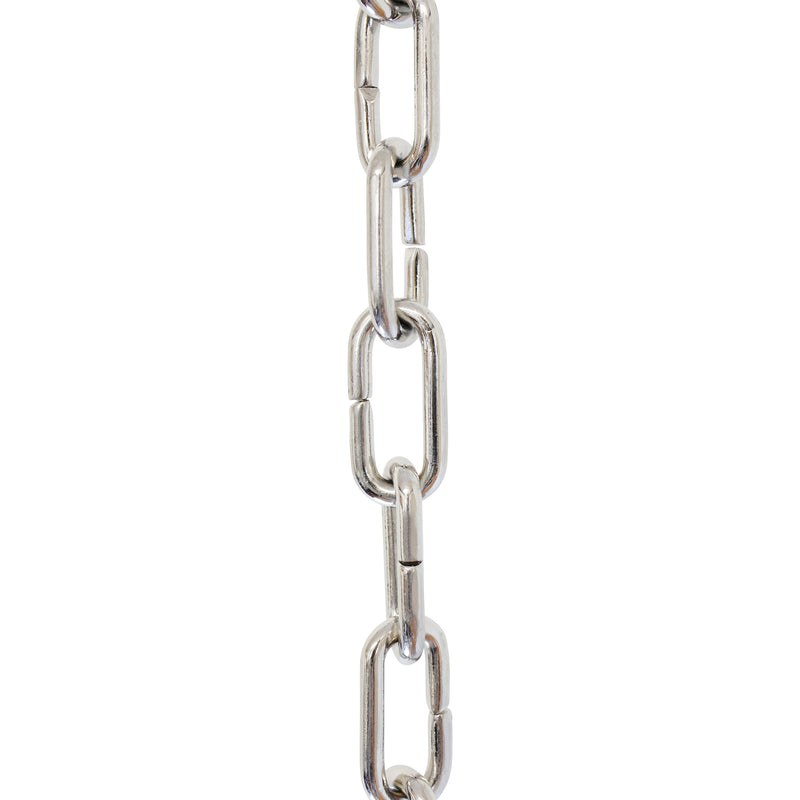

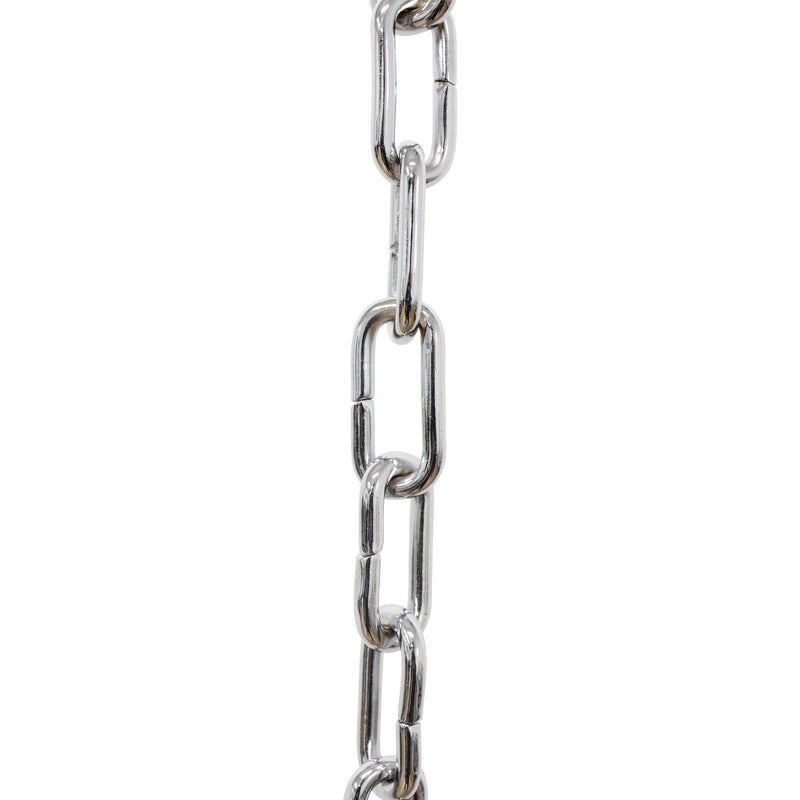

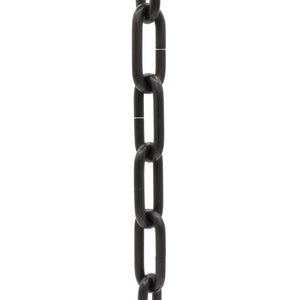

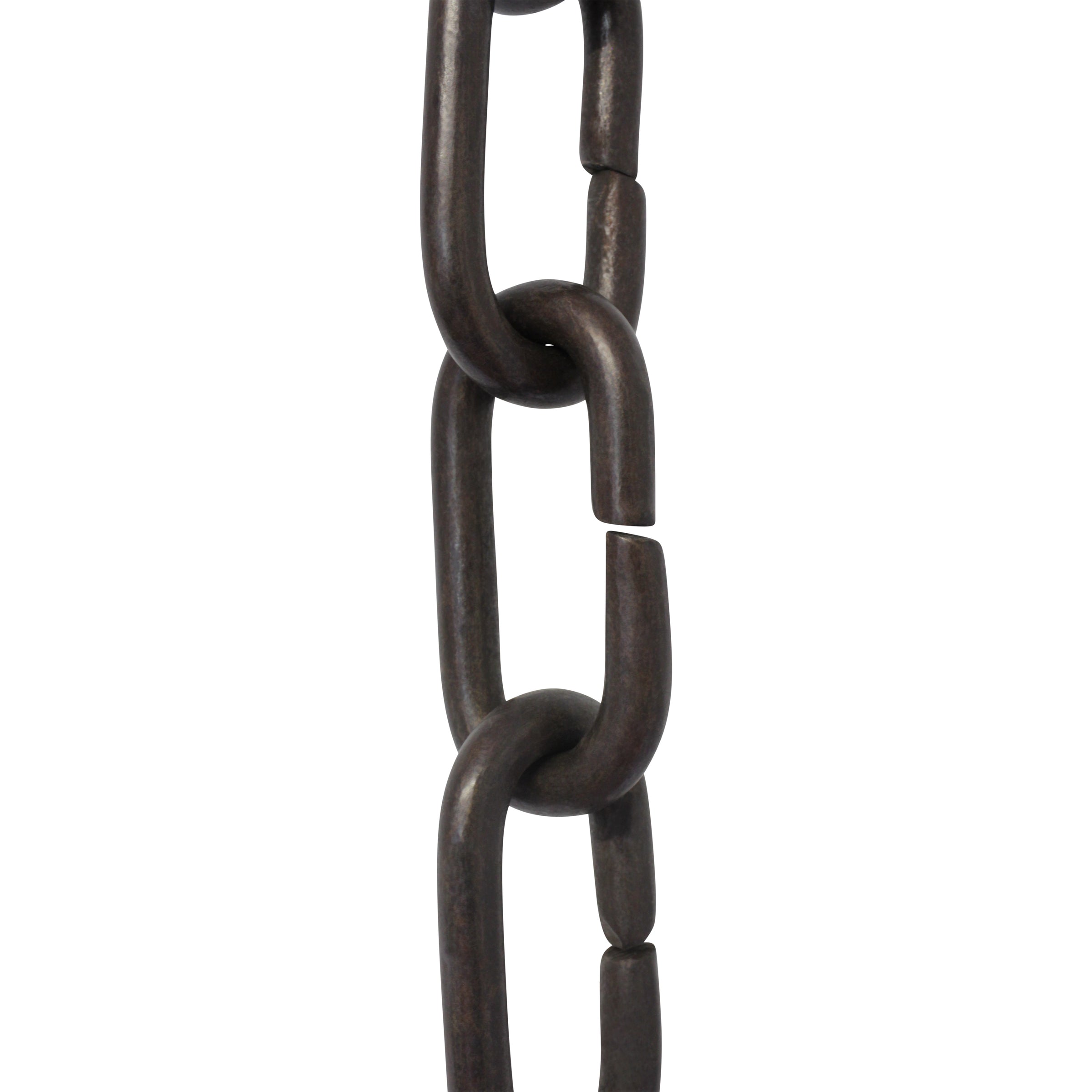

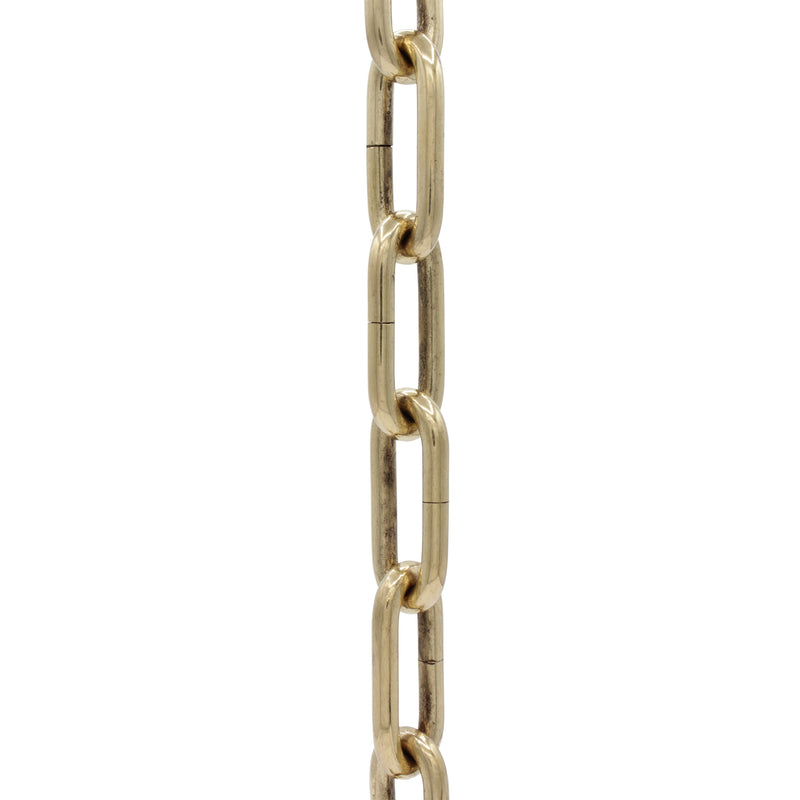

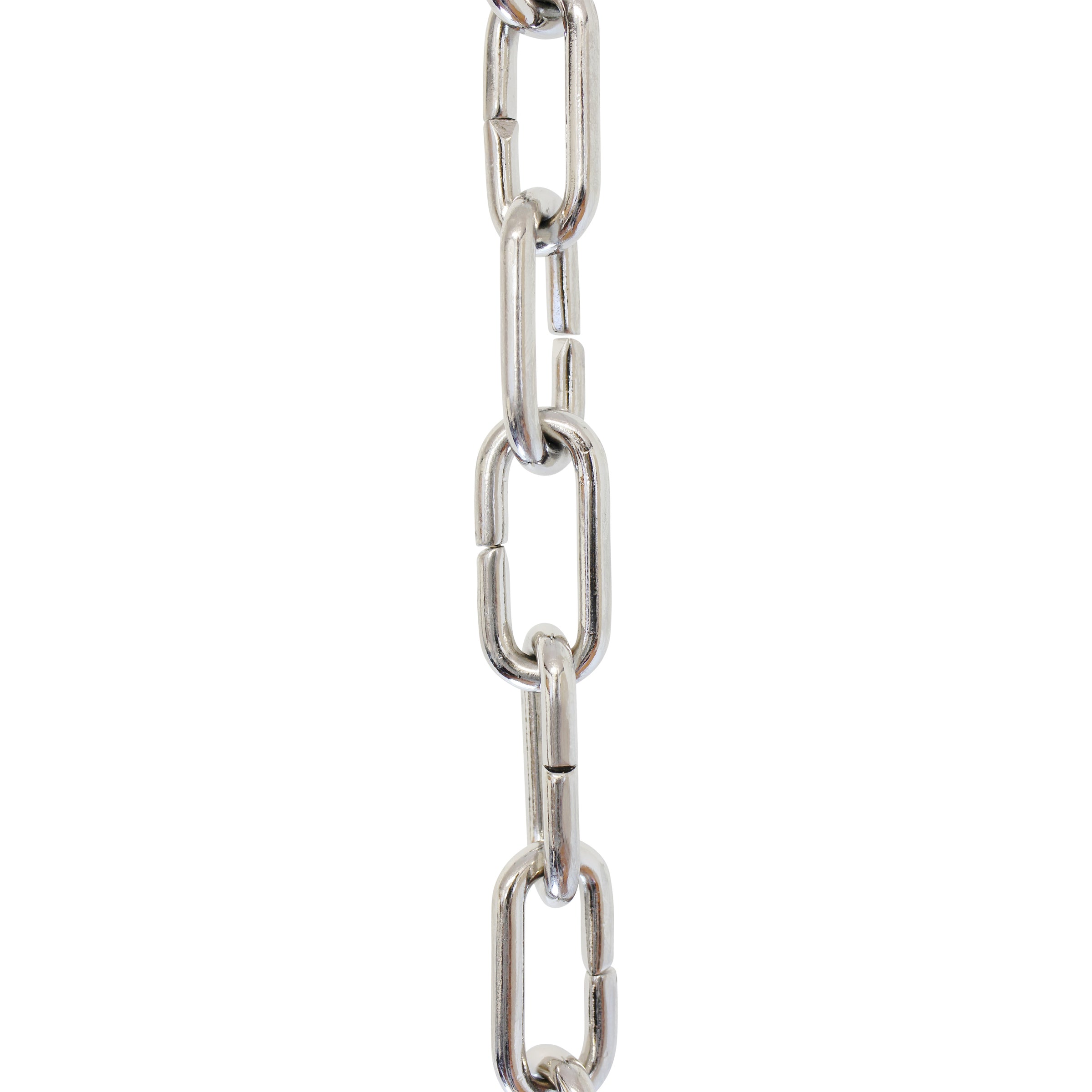

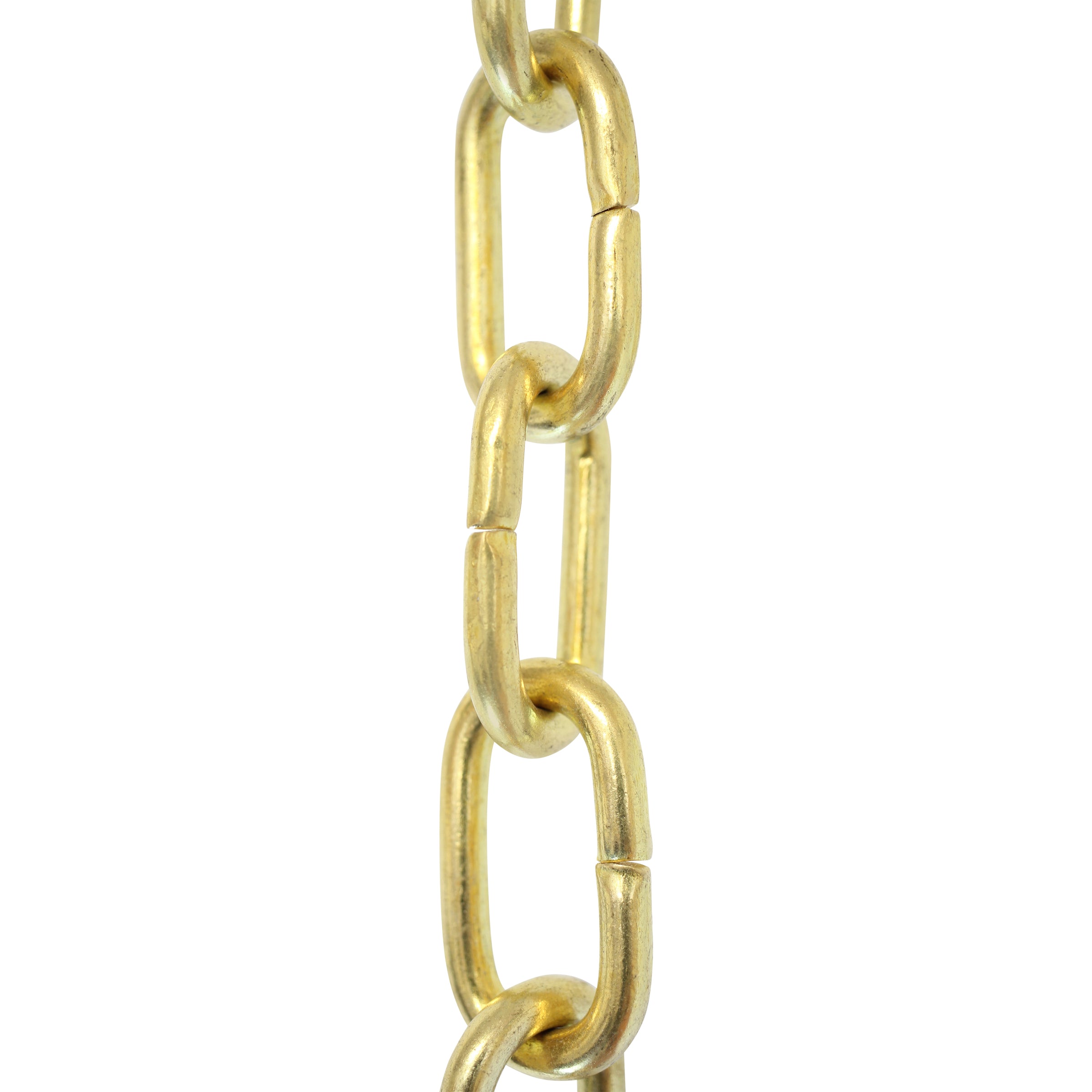

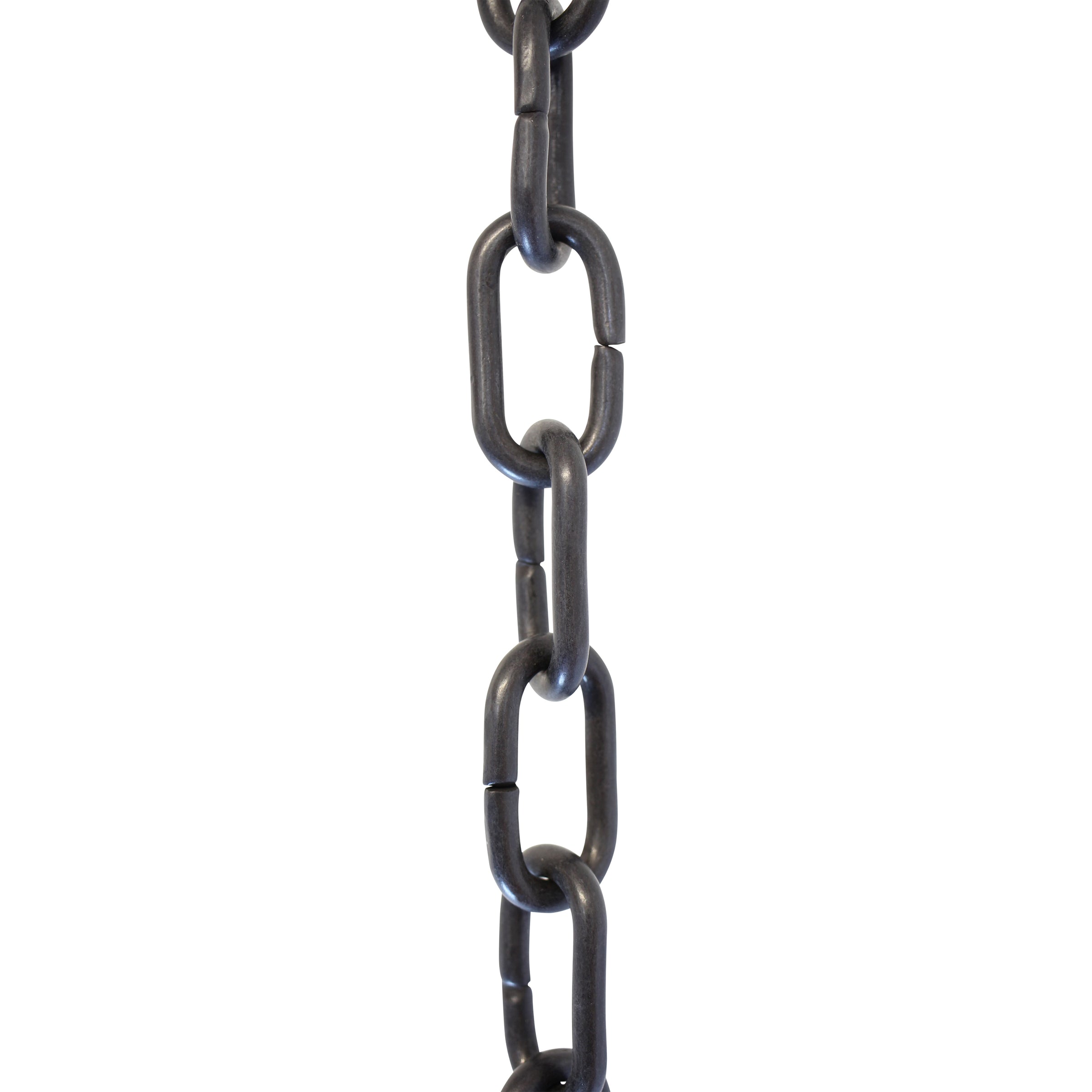

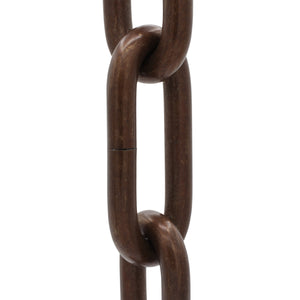

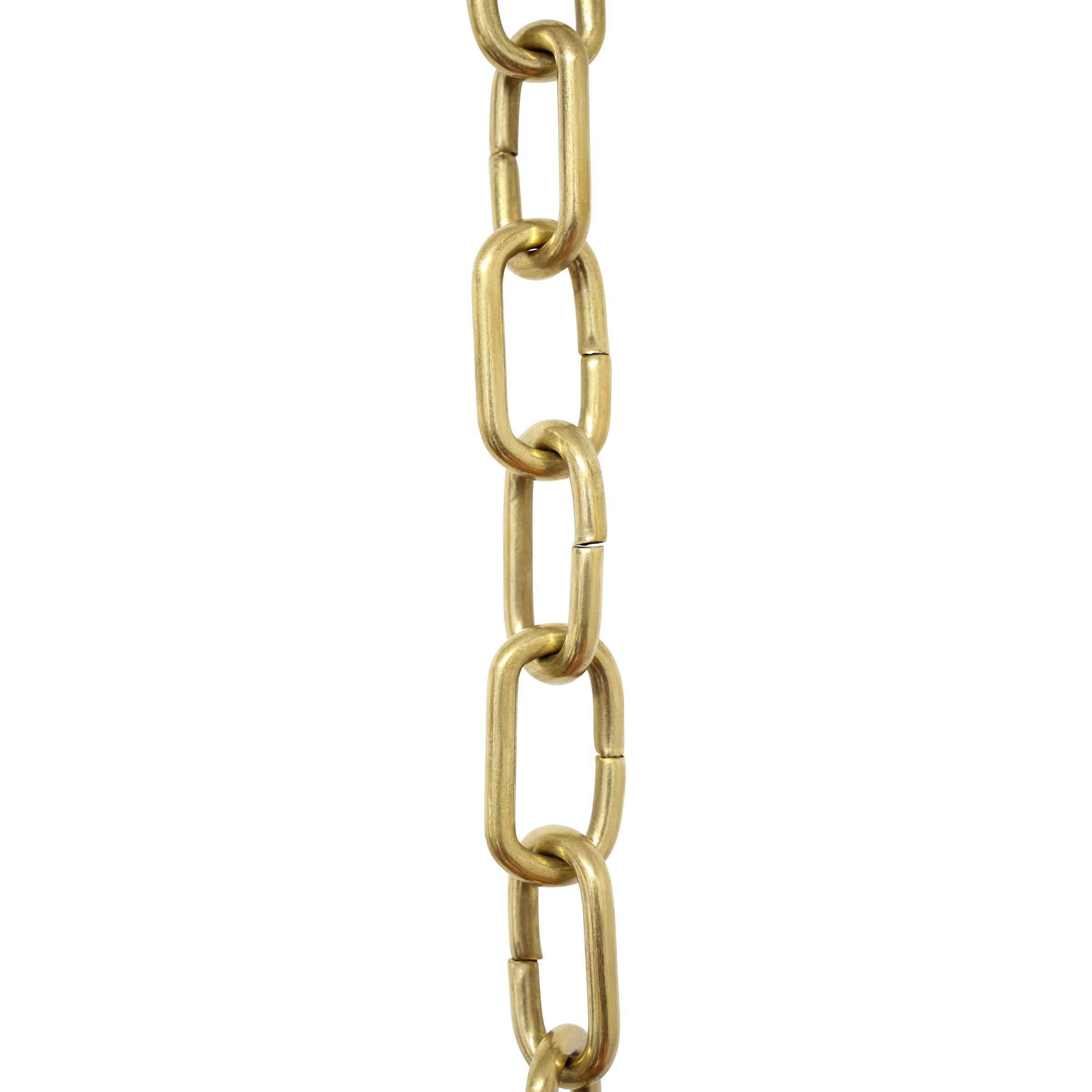

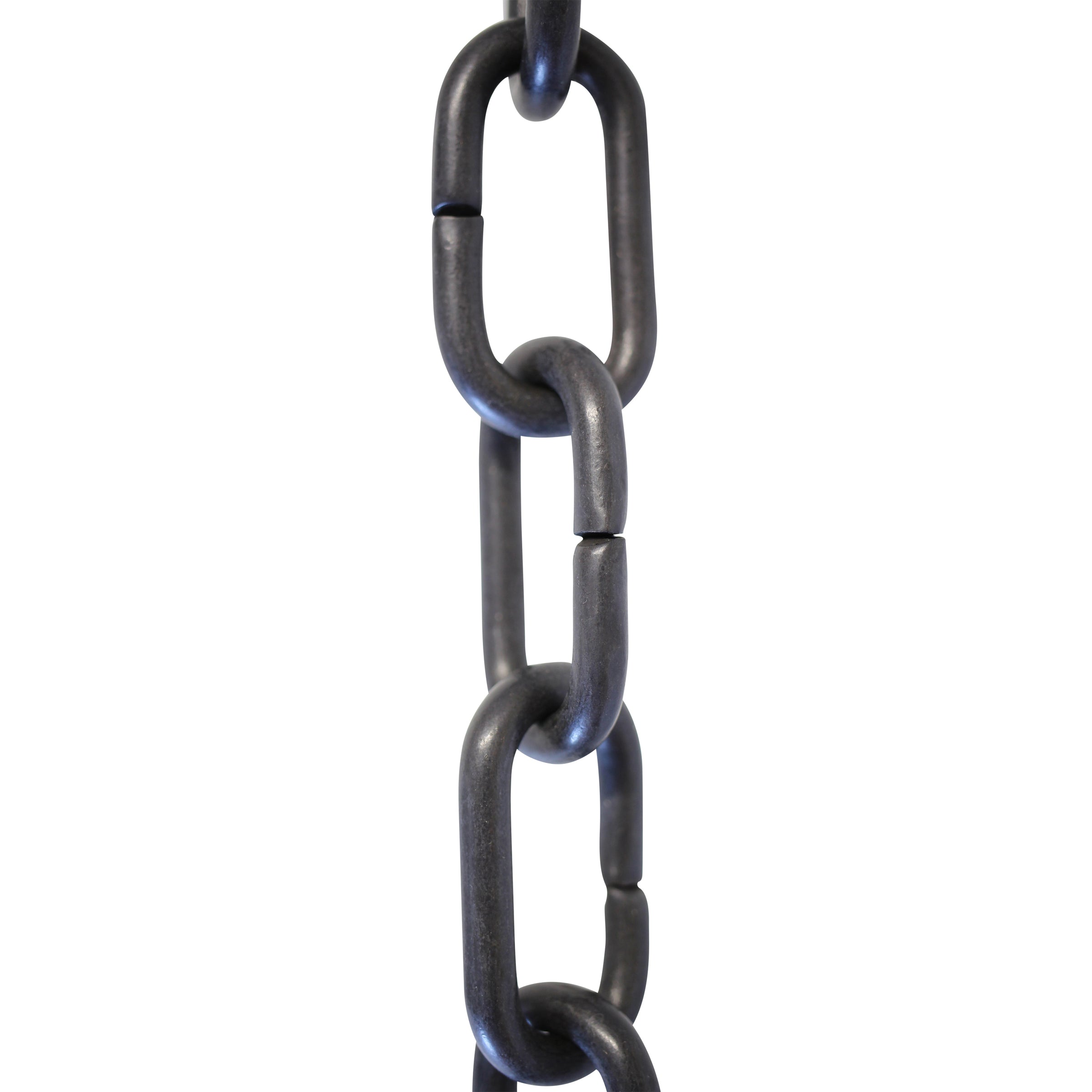

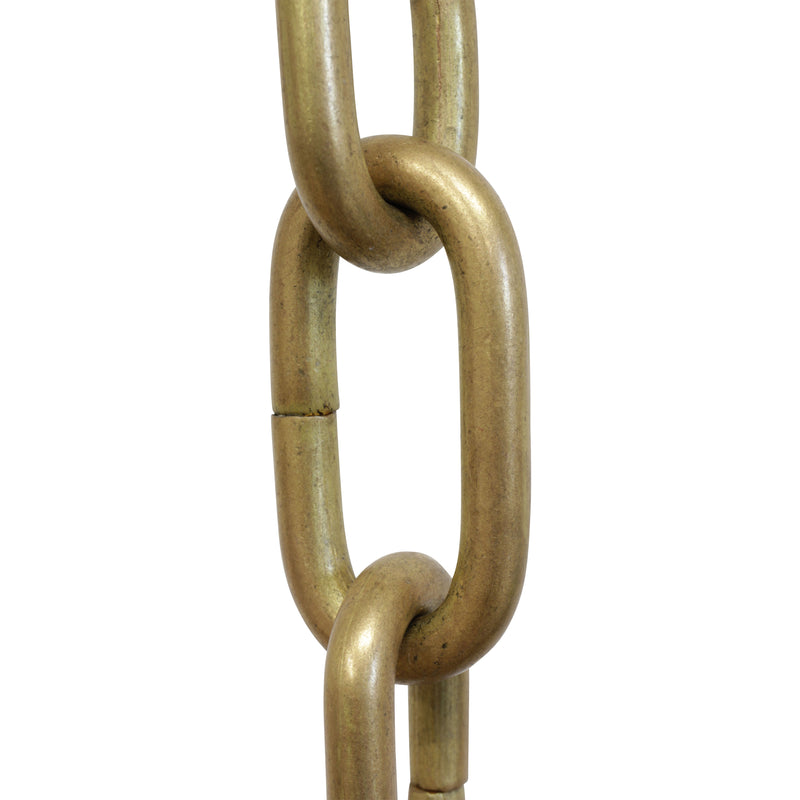

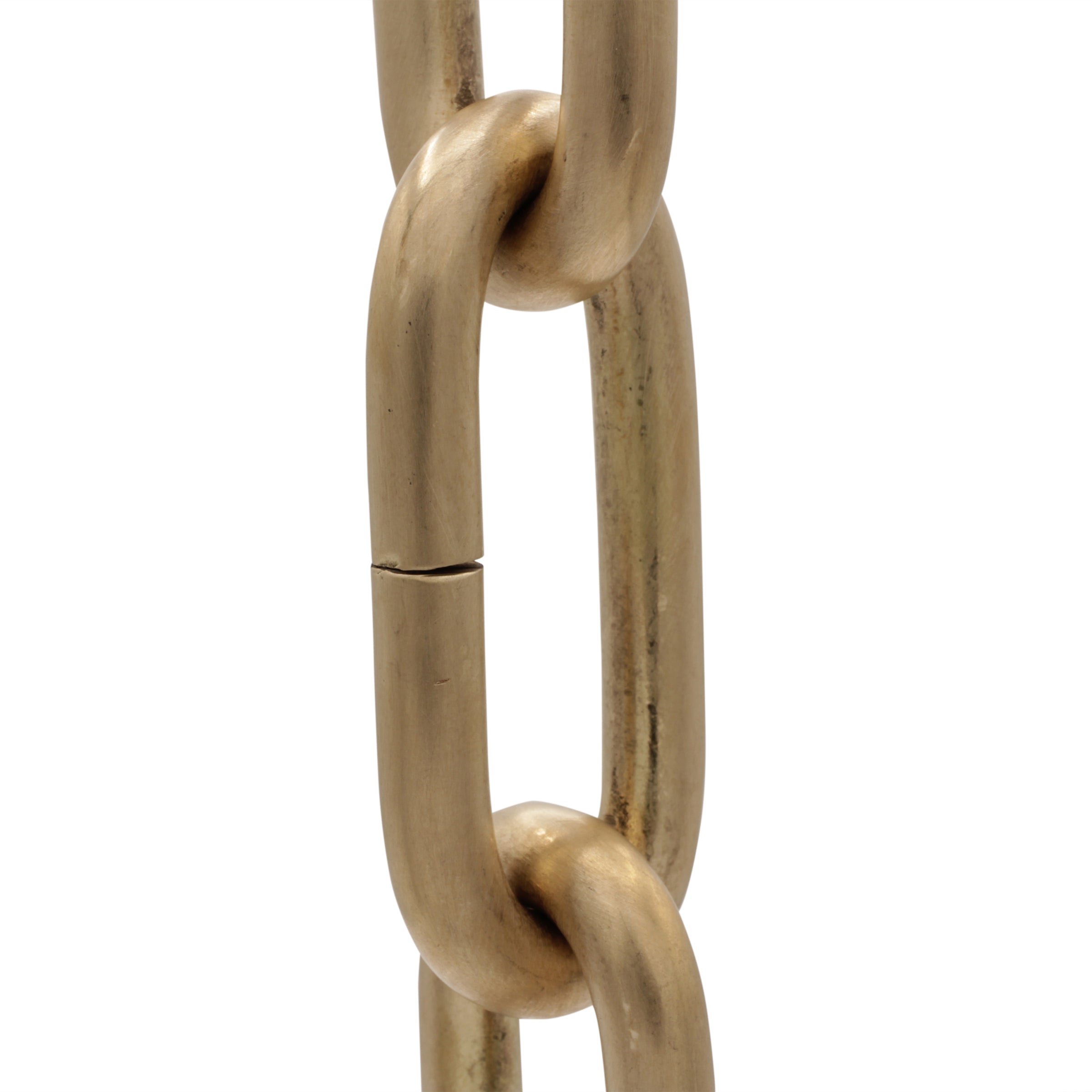

This item is available in Antique Brass, Acid Dipped, Antique Nickel, Bronze, Oil Bronzed Black, Polished Brass, Polished Chrome, Polished Nickel, Satin Nickel, Brushed Brass
Chains are priced by the foot and this product will be supplied as a continuous length if possible. Brass chains with unwelded links can be re-sized to lengthen or shorten the chain as needed.
LINK SIZE & SPECS
| Link Size | Gauge | Length (in) | Width (in) | Thickness (in) | Max Load (lbs) | Weight per Foot (lbs) |
|---|---|---|---|---|---|---|
| U47 | 5 | 1.85 | 0.94 | 0.2 | 64 | 0.44 |
| U65 | 1 | 2.6 | 1.14 | 0.31 | 0.73 |
The “weight per foot” signifies the weight of a 1-foot section the respective chain, not the weight a 1 ft section can sustain.
For example, if you order 8 ft of a chain that weights 0.25 lbs/ft, the total weight of that chain will be 2 lbs.
The “max load” is the amount of weight a chain can safely hold, regardless of how long it is.
When selecting a chain, we recommend calculating the total weight of chain based on the length you need, like in the example above.
Make sure that your total hanging weight (= total weight of fixture + total weight of chain) does not exceed the stated weight capacity.
| Variant | Spec Sheet (PDF) |
|---|---|
| U47 | u47_spec_sheet.pdf |
| U65 | -- |
Want it Welded? Find it here: Welded version of this chain.
Click Here for Chain Connectors
