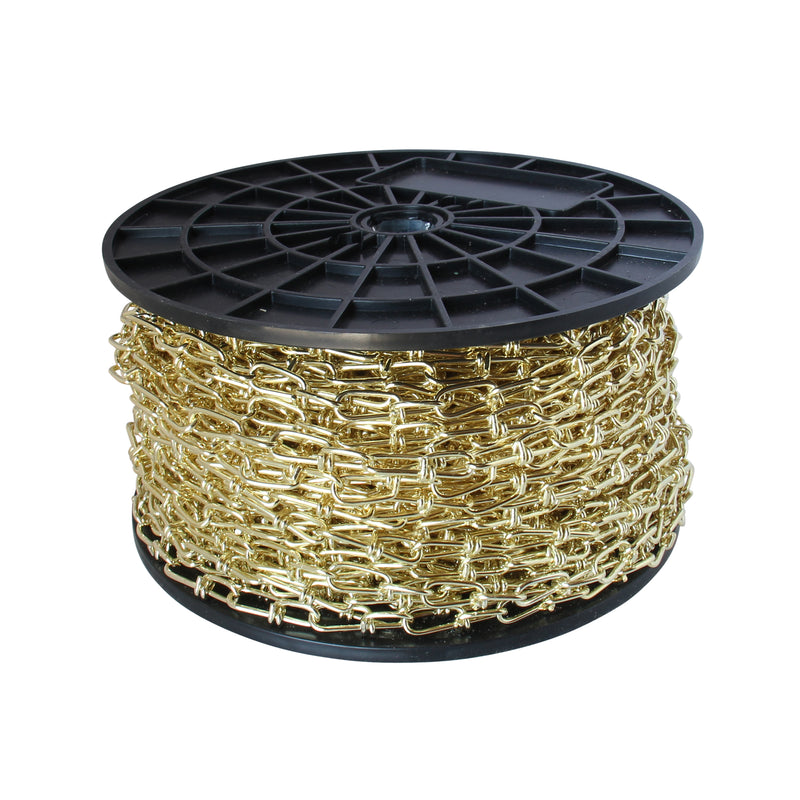

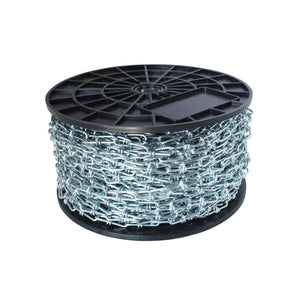

[Reel CH-ST52-U45] Steel Double Loop Basket Chain (164FT-REEL)

$146.70

FINISH
Black
Polished Brass
Zinc
Link Size
CH-S52-01-PB-164

Review our Shipping Policy

Chain ST52-U Double Loop Basket Chain with Unwelded Steel links

DESCRIPTION


• Max Weight: 155 lbs | Weight per Foot: 0.11 lbs
• Features: Unwelded, Double Loop Chain
• Material: Steel

This item is available in Black, Polished Brass, Zinc

Chains are priced by the foot and this product will be supplied as a reel of one continuous chain.

LINK SIZE & SPECS
Link Size Gauge Length (in) Width (in) Thickness (in) Max Load (lbs) Weight per Foot (lbs)
U32 14 1.26 0.39 0.07 90 0.06
U45 9 1.77 0.47 0.12 155 0.09

The “weight per foot” signifies the weight of a 1-foot section the respective chain, not the weight a 1 ft section can sustain. For example, if you order 8 ft of a chain that weights 0.25 lbs/ft, the total weight of that chain will be 2 lbs.

The “max load” is the amount of weight a chain can safely hold, regardless of how long it is. When selecting a chain, we recommend calculating the total weight of chain based on the length you need, like in the example above. Make sure that your total hanging weight (= total weight of fixture + total weight of chain) does not exceed the stated weight capacity.


Variant Spec Sheet (PDF)
U32 u32_spec_sheet.pdf
U45 u45_spec_sheet.pdf
Click Here for Chain Connectors
